F3000-SX33156V506CR

F3000-SX33156V506CR

Shacman • Dump Truck

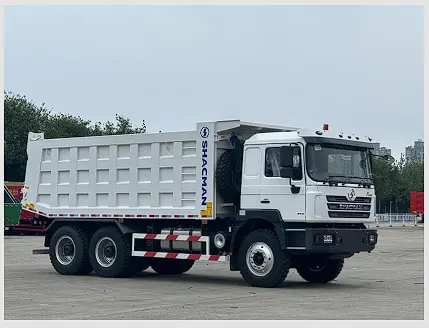

The SHACMAN F3000 SX32556R384CR is a rugged 6×4 dump truck designed for construction, quarrying, mining support, and heavy material transportation. Powered by the proven 345 HP Cummins ISME345-30 diesel engine, it delivers reliable performance, strong torque, and excellent fuel efficiency for demanding hauling operations. The truck is equipped with a durable FAST 10-speed manual transmission and heavy-duty MAN technology axles, providing exceptional drivability, traction, and load-carrying capability across challenging terrain. Its reinforced steel dump body, robust chassis, and comfortable SHACMAN F3000 cab with air conditioning ensure high productivity, operator comfort, and long service life. Built to withstand harsh working environments, the SX32556R384CR offers a dependable and cost-effective solution for fleet operators and contractors requiring reliable heavy-duty transport equipment.

Starting from
Call our sales team for pricing
Class
6×4
Body Volume
26.1 m³
Engine Power (HP)
345 HP

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class6×4
Drive Configuration6×4
Transmission / GearboxFAST 10JSD180T+QH50
SteeringRight-Hand Drive

Engine

Engine MakeCummins
Engine ModelISME345-30
Engine Power (kW)254 kW
Engine Power (HP)345 HP
Displacement10.8 L
Fuel / Power TypeDiesel
Emission StandardEuro III

Performance

Fuel Tank Capacity400 L

Dump Truck Specifications

Body Dimensions (L×W×H)5,800 × 2,500 × 1,800 mm
Body Volume26.1 m³
Axles (Front / Rear)MAN tech. 9500 kg
Tire Spec12 00R24
Tire Count10+1 pcs

Original Values (as stated)

Power254 KW / 345 HP
Up-Body5800mm×2500mm×1800mm Floor 10mm; Side 6 mm

Additional Specs

ModelSX32556R384CR
Cabin TypeSHACMAN F3000 flat Roof with A/C
Fuel Tank MaterialStainless Steel
Clutch Diameterφ430 mm
Rear AxleMAN tech. 16,000 kg x 2
Rear Axle TypeDouble reduction driven axle
Frame850×300(8+7)

Original Headline Specs

Heavy-Duty Drivetrain6×4 Drive Configuration
Heavy-Duty Drivetrain (description)The proven 6×4 drivetrain delivers excellent traction, stability, and payload performance, making it ideal for construction sites, quarry operations, and heavy-duty material transport on both paved and unpaved roads.
Engine Performance345 HP Cummins ISME345-30 Diesel Engine
Engine Performance (description)Powered by the reliable 10.8 L Cummins ISME345-30 engine producing 254 kW (345 HP), the truck provides strong torque, dependable performance, and fuel-efficient operation for demanding hauling applications.
Heavy-Duty TransmissionFAST 10-Speed Manual Transmission
Heavy-Duty Transmission (description)The FAST 10JSD180T+QH50 manual gearbox ensures smooth shifting, efficient power delivery, and dependable performance under varying loads and road conditions, helping maximize productivity and driving efficiency.
High-Capacity Dump Body5,800 × 2,500 × 1,800 mm Steel Body
High-Capacity Dump Body (description)Built with a 10 mm high-strength steel floor and 6 mm side panels, the dump body offers excellent durability and wear resistance for transporting aggregates, rock, soil, and other heavy bulk materials in demanding environments.
