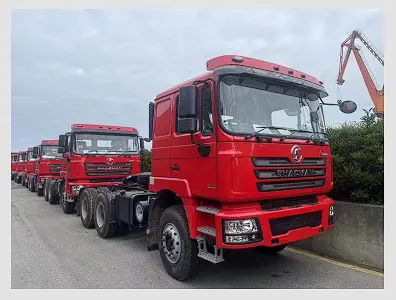

F3000-SX4255JV324R

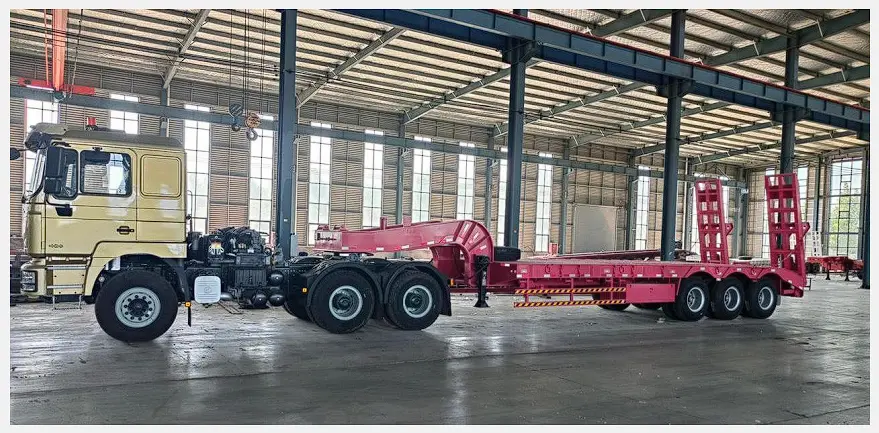

F3000-SX4255JV324R view 2

F3000-SX4255JV324R

Shacman • Tractor

The SHACMAN F3000 SX4255JV324R is a heavy-duty 6×4 tractor head engineered for long-haul logistics, container transport, heavy cargo, and industrial freight operations. Powered by the robust 430 HP WEICHAI WP12.430N diesel engine, it delivers exceptional pulling power, fuel efficiency, and reliability for demanding transportation tasks. Matched with the proven FAST 12-speed manual transmission and MAN technology double-reduction drive axles, the SX4255JV324R provides excellent traction, smooth power delivery, and dependable performance across highways and challenging road conditions. The spacious SHACMAN F3000 flat-roof cabin features air conditioning and an ergonomic layout to maximize driver comfort during extended journeys. Designed with a reinforced chassis and high-quality drivetrain components, the SX4255JV324R offers durability, low maintenance costs, and outstanding operational efficiency for modern commercial fleets.

Starting from
Call our sales team for pricing
Class
6×4 · 430 HP
Drive Configuration
6×4
Engine Power (HP)
430 HP
Transmission / Gearbox
FAST 12JSD200T

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class6×4 · 430 HP
Drive Configuration6×4
Transmission / GearboxFAST 12JSD200T
SteeringRight-Hand Drive

Engine

Engine MakeWeichai
Engine ModelWP12.430N
Engine Power (kW)316 kW
Engine Power (HP)430 HP
Displacement11.596 L
Fuel / Power TypeDiesel
Emission StandardEuro III

Performance

Fuel Tank Capacity380 L

Tractor Specifications

Axles (Front / Rear)MAN tech. 9500 kg
Tire Spec12 00R20
Tire Count10+1 pcs

Original Values (as stated)

Power316 KW / 430 HP

Additional Specs

ModelSX4255JV324R
Cabin TypeSHACMAN F3000 flat Roof with A/C
Fuel Tank MaterialIron
Clutch Diameterφ430 mm
Rear AxleMAN tech. 16,000 kg x 2
Rear Axle TypeDouble reduction driven axle
Frame850×300(8+7)
Low Flat-Bed60t, 80t, 100t, 120t

Original Headline Specs

Heavy-Duty Drivetrain6×4 Drive Configuration
Heavy-Duty Drivetrain (description)The 6×4 drivetrain delivers excellent traction, stability, and pulling performance, making the SX4255JV324R ideal for heavy cargo transport, container hauling, and long-distance logistics operations.
Engine Performance430 HP WEICHAI WP12.430N Diesel Engine
Engine Performance (description)Powered by the 11.6 L WEICHAI WP12.430N engine producing 316 kW (430 HP), the truck delivers high torque, dependable performance, and fuel-efficient operation for demanding long-haul transportation.
Heavy-Duty TransmissionFAST 12-Speed Manual Transmission
Heavy-Duty Transmission (description)Equipped with the reliable FAST 12JSD200T gearbox, the truck provides smooth gear shifting, optimized power transfer, and excellent driving performance across varying road conditions and heavy payloads.
Premium Heavy-Duty ChassisMAN Technology Axles • 380 L Fuel Tank
Premium Heavy-Duty Chassis (description)Featuring MAN technology front and double-reduction rear axles together with a 380 L fuel tank, the SX4255JV324R offers excellent durability, long operating range, and dependable performance for continuous commercial transport operations.
