X3000-SX33156V506CR

X3000-SX33156V506CR

Shacman • Dump Truck

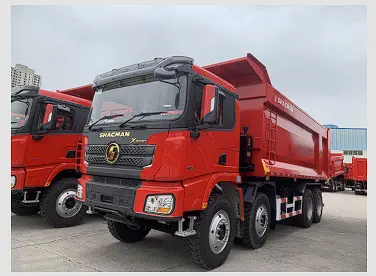

The SHACMAN SX33156V506CR X3000 is a heavy-duty 8×4 dump truck engineered for mining, quarrying, infrastructure, and large-scale construction projects. Powered by the proven 420 HP Cummins ISME420-30 diesel engine, it delivers exceptional torque, reliable performance, and excellent fuel efficiency for demanding hauling operations. Paired with the robust FAST 12-speed manual transmission and MAN technology heavy-duty axles, the X3000 provides superior traction, durability, and payload capability across challenging terrain. Its reinforced steel dump body, heavy-duty chassis, and spacious SHACMAN F3000 cab with air conditioning ensure maximum productivity, operator comfort, and long-term reliability. Built to withstand harsh operating conditions, the SX33156V366CR is the ideal solution for contractors and fleet operators seeking high performance, durability, and lower operating costs.

Starting from
Call our sales team for pricing
Class
8×4
Body Volume
50.6 m³
Engine Power (HP)
420 HP

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class8×4
Drive Configuration8×4
Transmission / GearboxFAST 12JSD200T-B
SteeringRight-Hand Drive

Engine

Engine MakeCummins
Engine ModelISME420-3
Engine Power (kW)306 kW
Engine Power (HP)420 HP
Displacement10.8 L
Fuel / Power TypeDiesel
Emission StandardEuro III

Performance

Fuel Tank Capacity400 L

Dump Truck Specifications

Body Dimensions (L×W×H)8,800 × 2,500 × 2,300 mm
Body Volume50.6 m³
Axles (Front / Rear)MAN tech. 9500 kg
Tire Spec12 00R24
Tire Count12+1 pcs

Original Values (as stated)

Power306 KW / 420 HP
Up-Body8800mm×2500mm×2300mm Floor 10mm; Side 6 mm

Additional Specs

ModelSX33156V506CR
Cabin TypeSHACMAN F3000 flat Roof with A/C
Fuel Tank MaterialAluminium Alloy
Clutch Diameterφ430 mm
Rear AxleMAN tech. 16,000 kg x 2
Rear Axle TypeDouble reduction driven axle
Frame850×300(8+7+8)

Original Headline Specs

Heavy-Duty Drivetrain8×4 Drive Configuration
Heavy-Duty Drivetrain (description)The 8×4 drivetrain provides excellent load distribution, traction, and stability, making the truck ideal for transporting heavy materials across construction sites, mines, and challenging off-road environments.
Engine Performance420 HP Cummins ISME420-30 Diesel Engine
Engine Performance (description)Powered by the reliable 10.8 L Cummins ISME420-30 engine, producing 306 kW (420 HP), the truck delivers outstanding torque, fuel efficiency, and dependable performance for demanding heavy-haul applications.
Heavy-Duty TransmissionFAST 12-Speed Manual Transmission
Heavy-Duty Transmission (description)Equipped with the proven FAST 12JSD200T-B gearbox, the SX33156V366CR offers smooth gear changes, excellent gradeability, and optimized power delivery for efficient operation under varying load conditions.
High-Capacity Dump Body7,200 × 2,500 × 1,800 mm Steel Body
High-Capacity Dump Body (description)The reinforced dump body features a 10 mm floor and 6 mm side panels, providing exceptional durability and wear resistance for hauling aggregates, rocks, soil, and other heavy bulk materials in demanding work environments.
