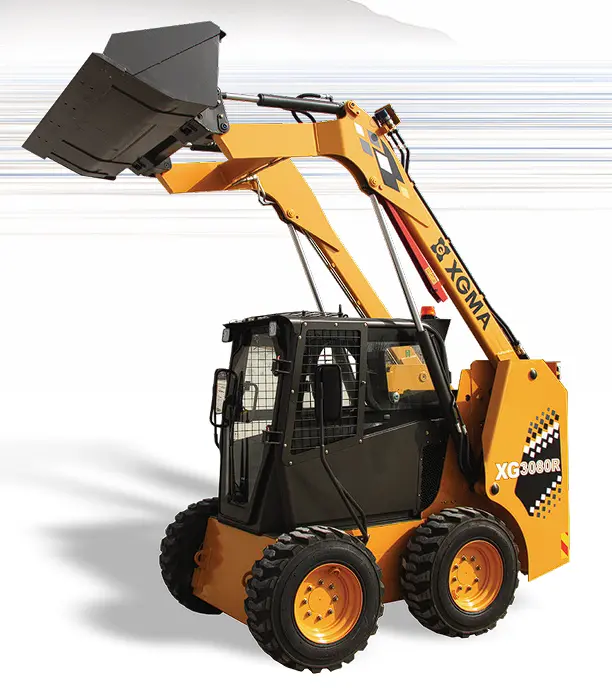

XG3080R
XG3080R view 2

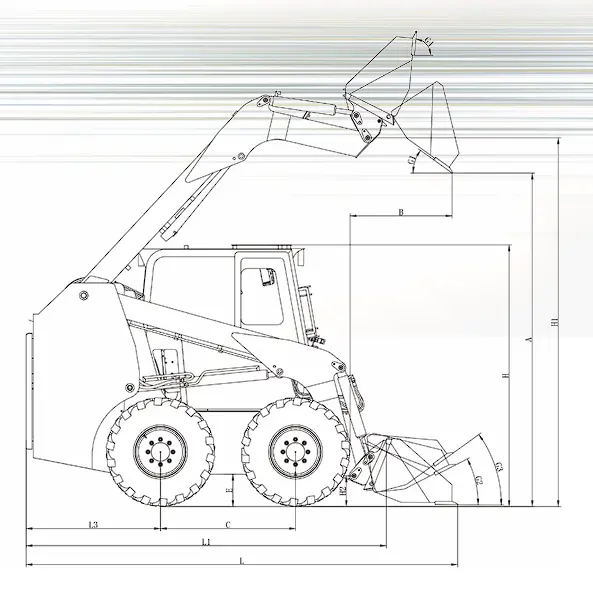

XG3080R view 3

XG3080R

XGMA • Skid Loader

The XGMA XG3080R is a compact skid steer loader engineered for versatility, productivity, and reliable performance across construction, agriculture, landscaping, and industrial applications. With an operating weight of approximately 3.35 tons and a rated operating capacity of up to 900 kg, it is ideal for loading, material handling, and site maintenance tasks. Powered by a dependable 50 HP Xinchai diesel engine, the XG3080R delivers efficient hydraulic performance and excellent fuel economy. Its compact design provides outstanding maneuverability in confined spaces, while the quick-attach system supports a wide range of attachments for increased jobsite flexibility. The spacious enclosed cab features ergonomic joystick controls, air conditioning, and excellent visibility, ensuring operator comfort throughout long working hours. Combining durability, low operating costs, and dependable performance, the XG3080R is a practical and cost-effective skid steer loader for contractors and fleet operators seeking maximum efficiency in demanding environments.

Starting from
Call our sales team for pricing
Class
900 kg class
Payload / Rated Load
900 kg
Bucket Capacity
0.48 m³
Operating Weight
2,390 kg

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class900 kg class

Dimensions & Weights

Operating Weight2,390 kg
Payload / Rated Load900 kg
Overall Length3,485 mm
Overall Width1,705 mm
Overall Height2,050 mm
Wheelbase1,080 mm
Min. Ground Clearance220 mm
Min. Turning Radius1,625 mm

Performance

Max. Travel Speed13 km/h

Skid Loader Specifications

Bucket Capacity0.48 m³
Breakout / Digging Force20 kN
Dumping Height3,090 mm
Max. Traction26 kN

Additional Specs

Tread (mm)1385
Overall Length without Bucket (mm)2580
Rollback Angle at Ground28°
Rollback Angle at Carry Position30°
Rollback Angle Fully Raised85°
Turning Radius w/ Bucket (Carry Position)2700 mm

Original Headline Specs

Rated Load Capacity900 kg
Rated Load Capacity (description)Designed to handle demanding material handling tasks, the XG3080R offers a rated load capacity of 900 kg, making it suitable for construction, mining, agriculture, and industrial applications. The optimized lifting system provides stable operation while maintaining excellent productivity in confined job sites
Bucket Capacity0.48 m³
Bucket Capacity (description)Equipped with a standard 0.48 m³ bucket, the XG3080R efficiently handles aggregates, soil, sand, and other bulk materials. The durable bucket design and strong hydraulic system enable fast loading cycles, helping operators maximize productivity while minimizing operating time
Operating Weight2,390 kg
Operating Weight (description)With an operating weight of 2,390 kg, the skid steer provides an excellent balance between stability and maneuverability. Its compact footprint allows easy operation in tight spaces while maintaining the traction and control required for demanding work environments.
Breakout Force20 kN
Breakout Force (description)Delivering a breakout force of 20 kN, the XG3080R easily penetrates compacted soil, gravel, and other tough materials. Combined with a 26 kN drawing force and a 9.5-second hydraulic cycle time, it delivers reliable digging performance and efficient loading throughout the workday.
