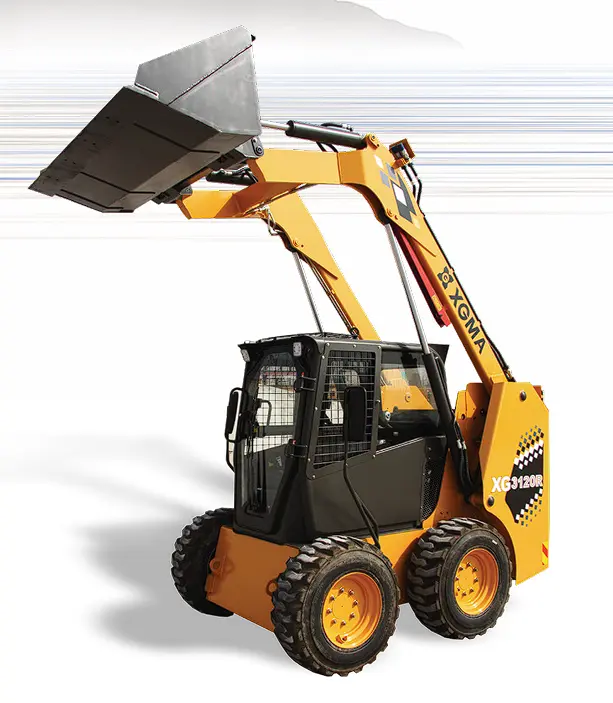

XG3120R
XG3120R view 2

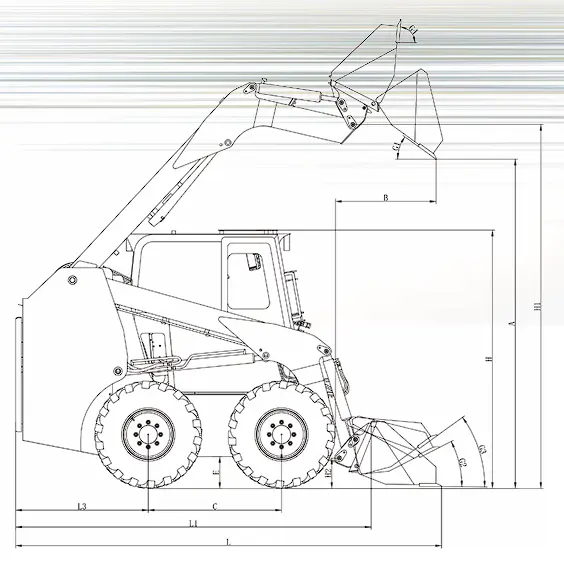

XG3120R view 3

XG3120R

XGMA • Skid Loader

The XGMA XG3120R is a powerful mid-size skid steer loader designed for demanding construction, mining, agriculture, and industrial applications. With a rated operating capacity of 1,200 kg and a 0.54 m³ standard bucket, it delivers exceptional loading efficiency and productivity for a wide range of material handling tasks. Weighing 3,630 kg, the machine offers excellent stability while maintaining the maneuverability required for confined job sites. Its robust hydraulic system generates a 28 kN breakout force and 31 kN drawing force, enabling efficient digging and loading even in challenging conditions. Fast hydraulic cycle times of just 9.4 seconds help maximize productivity, while a top travel speed of 23 km/h allows quick movement around the worksite. Featuring a compact design, durable construction, and compatibility with various attachments, the XG3120R is a reliable and cost-effective solution for operators seeking versatility, performance, and long-term durability.

Starting from
Call our sales team for pricing
Class
1200 kg class
Payload / Rated Load
1,200 kg
Bucket Capacity
0.54 m³
Operating Weight
3,630 kg

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class1200 kg class

Dimensions & Weights

Operating Weight3,630 kg
Payload / Rated Load1,200 kg
Overall Length3,570 mm
Overall Width1,705 mm
Overall Height2,050 mm
Wheelbase1,080 mm
Min. Ground Clearance220 mm
Min. Turning Radius1,625 mm

Performance

Max. Travel Speed23 km/h

Skid Loader Specifications

Bucket Capacity0.54 m³
Breakout / Digging Force28 kN
Dumping Height2,390 mm
Max. Traction31 kN

Additional Specs

Tread (mm)1385
Overall Length without Bucket (mm)3570
Rollback Angle at Ground28°
Rollback Angle at Carry Position30°
Rollback Angle Fully Raised85°
Turning Radius w/ Bucket (Carry Position)2950 mm

Original Headline Specs

Rated Load Capacity1,200 kg
Rated Load Capacity (description)With a rated operating capacity of 1,200 kg, the XG3120R is built to handle heavier loads efficiently. It is ideal for construction, mining, landscaping, and industrial material handling, providing stable lifting performance and increased productivity throughout demanding work cycles.
Bucket Capacity0.54 m³
Bucket Capacity (description)The standard 0.54 m³ bucket enables efficient loading of aggregates, soil, gravel, and other bulk materials. Combined with the machine's powerful hydraulic system, it delivers faster loading cycles and improved operational efficiency on any jobsite.
Operating Weight3,630 kg
Operating Weight (description)An operating weight of 3,630 kg provides outstanding machine stability during lifting, digging, and loading operations. The balanced chassis improves traction and control, allowing operators to work confidently across uneven terrain while maintaining excellent maneuverability.
Breakout Force28 kN
Breakout Force (description)Delivering a powerful 28 kN breakout force and 31 kN drawing force, the XG3120R easily penetrates compacted soil and heavy materials. Combined with a fast 9.4-second hydraulic cycle time, it ensures high productivity and dependable performance in demanding applications.
