Fleet>Skid Loader>XG3140R

XG3140R

Name: XG3140R
Brand: XGMA
Availability: InStock

XGMA • Skid Loader

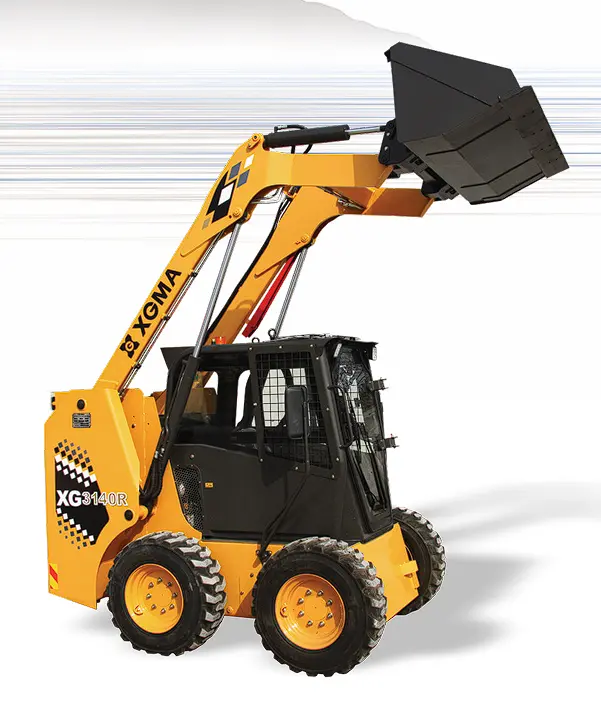

The XGMA XG3140R is a high-capacity skid steer loader engineered to deliver exceptional performance in construction, mining, agriculture, and industrial material handling applications. Featuring a rated operating capacity of 1,400 kg and a 0.54 m³ standard bucket, it efficiently handles heavier loads while maintaining excellent maneuverability in confined workspaces. With an operating weight of 3,960 kg, the XG3140R provides outstanding stability and traction for demanding jobsite conditions. Its powerful hydraulic system generates 28 kN breakout force and 31 kN drawing force, enabling efficient digging, loading, and material handling. Fast hydraulic cycle times of just 9.4 seconds maximize productivity, while a travel speed of 20 km/h allows operators to move quickly between work areas. Built with a durable frame and compatible with a wide range of attachments, the XG3140R is a reliable, versatile, and cost-effective machine designed to improve operational efficiency and reduce downtime.

Starting from

Call our sales team for pricing

Class

1400 kg class

Payload / Rated Load

1,400 kg

Bucket Capacity

0.54 m³

Operating Weight

3,630 kg

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class1400 kg class

Dimensions & Weights

Operating Weight3,630 kg

Payload / Rated Load1,400 kg

Overall Length3,570 mm

Overall Width1,705 mm

Overall Height2,050 mm

Wheelbase1,080 mm

Min. Ground Clearance220 mm

Min. Turning Radius1,625 mm

Performance

Max. Travel Speed20 km/h

Skid Loader Specifications

Bucket Capacity0.54 m³

Breakout / Digging Force28 kN

Dumping Height2,390 mm

Max. Traction31 kN

Additional Specs

Tread (mm)1385

Overall Length without Bucket (mm)3570

Rollback Angle at Ground28°

Rollback Angle at Carry Position30°

Rollback Angle Fully Raised85°

Turning Radius w/ Bucket (Carry Position)2950 mm

Original Headline Specs

Rated Load Capacity1,400 kg

Rated Load Capacity (description)The XG3140R delivers an impressive rated operating capacity of 1,400 kg, allowing it to efficiently handle heavy materials in construction, mining, agriculture, and industrial applications. Its stable lifting performance helps improve productivity while maintaining excellent control and safety during demanding operations.

Bucket Capacity0.54 m³

Bucket Capacity (description)The standard 0.54 m³ bucket enables efficient loading of aggregates, soil, gravel, and other bulk materials. Combined with the machine's powerful hydraulic system, it delivers faster loading cycles and improved operational efficiency on any jobsite.

Operating Weight3,630 kg

Operating Weight (description)An operating weight of 3,630 kg provides outstanding machine stability during lifting, digging, and loading operations. The balanced chassis improves traction and control, allowing operators to work confidently across uneven terrain while maintaining excellent maneuverability.

Breakout Force28 kN

Breakout Force (description)Delivering a powerful 28 kN breakout force and 31 kN drawing force, the XG3120R easily penetrates compacted soil and heavy materials. Combined with a fast 9.4-second hydraulic cycle time, it ensures high productivity and dependable performance in demanding applications.

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
