Fleet>Forklift>XG5100-DT5

XG5100-DT5

Name: XG5100-DT5
Brand: XGMA
Availability: InStock

XGMA • Forklift

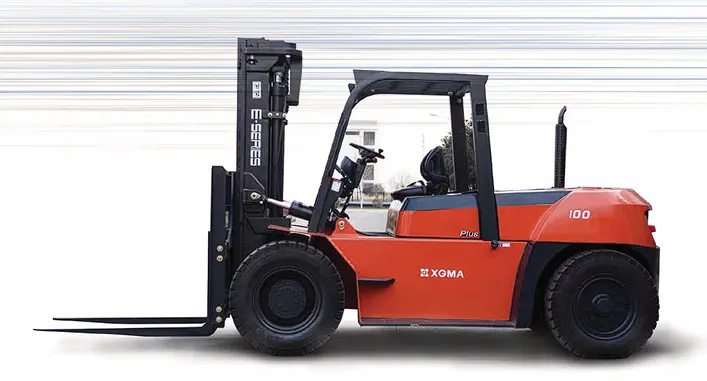

The XGMA XG5100-DT5 is a 10-ton diesel forklift engineered for intensive industrial applications requiring maximum reliability and lifting performance. Powered by the CY4BG231-15 diesel engine, it offers excellent torque, fuel efficiency, and consistent performance for continuous material handling. Its durable chassis, efficient hydraulic system, and ergonomic operator cabin help maximize productivity while reducing operator fatigue and maintenance costs, making it an ideal solution for warehouses, ports, logistics centers, and construction sites.

Starting from

Call our sales team for pricing

Class

10 T class

Fuel / Power Type

Diesel Oil

Mast Lift Height

3,000 mm

Engine Power (kW)

95 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class10 T class

Dimensions & Weights

Operating Weight12,500 kg

Kerb Weight12,500 kg

Gross Vehicle Weight (GVW)22,500 kg

Payload / Rated Load10,000 kg

Min. Ground Clearance245 mm

Engine

Engine MakeChaochai Construction Machinery Diesel Engine

Engine ModelCY4BG131-15

Engine Power (kW)95 kW

Engine Power (HP)127 HP

Rated Engine Speed2,200 rpm

Max. Torque500 N·m

Fuel / Power TypeDiesel Oil

Performance

Max. Travel Speed25 km/h

Gradeability23%

Power-to-Weight7.6 kW/T

Forklift Specifications

Load Center Distance600 mm

Mast Lift Height3,000 mm

Lifting Speed (Loaded)340 mm/s

Original Values (as stated)

Dead Weight12500 kg ±5%

Additional Specs

Model NameCPCD100

Mast Forward Incline Angle6°

Mast Backward Incline Angle12°

Max. Speed1400-1600 r/min

Original Headline Specs

Rated Capacity10.000 kg

Rated Capacity (description)Designed to safely handle pallets, machinery, construction materials, and industrial goods with excellent lifting stability.

Efficient PowertrainXG550-DT5 Diesel Engine

Efficient Powertrain (description)Provides reliable performance, strong torque, and fuel-efficient operation for demanding work environments.

Fast Handling Performance25 km/h Travel Speed

Fast Handling Performance (description)High travel speed and responsive hydraulics improve productivity during loading, unloading, and warehouse transport.

Heavy-Duty Construction12,500 kg Operating Weight

Heavy-Duty Construction (description)Durable frame and reinforced chassis ensure stability, long service life, and reliable operation under demanding workloads.
