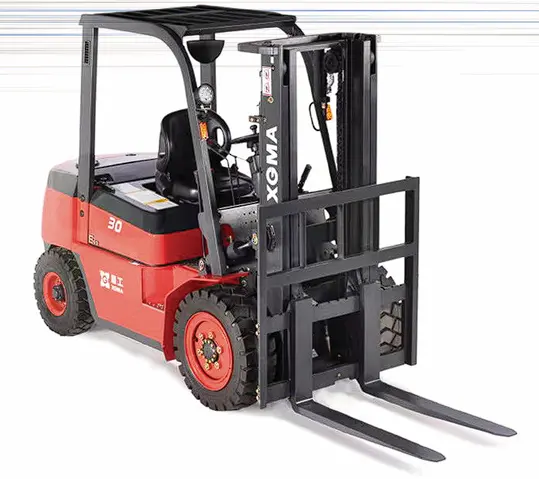

XG535-D5
XGMA • Forklift
The XGMA XG535-D5 is a 3.5-ton LPG/Gasoline forklift built for heavier material handling tasks requiring increased lifting capacity and dependable performance. Powered by the Xinchai 4D27G31 engine, it combines smooth power delivery, efficient operation, and excellent durability. Its reinforced chassis, responsive hydraulic system, and ergonomic controls provide superior stability, operator comfort, and productivity, making it suitable for warehouses, logistics operations, manufacturing plants, and construction material yards.
Starting from
Call our sales team for pricing
Class
3 T class
Fuel / Power Type
LPG / Gasoline
Engine Power (kW)
40 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class3 T class
Dimensions & Weights
Operating Weight4,250 kg
Kerb Weight4,500 kg
Gross Vehicle Weight (GVW)7,500 kg
Payload / Rated Load3,000 kg
Engine
Engine MakeXinchai
Engine ModelXinchai4D27G31
Engine Power (kW)40 kW
Engine Power (HP)54 HP
Rated Engine Speed2,650 rpm
Max. Torque156 N·m
Fuel / Power TypeLPG / Gasoline
Performance
Max. Travel Speed20 km/h
Power-to-Weight9.4 kW/T
Forklift Specifications
Lifting Speed (Loaded)450 mm/s
Additional Specs
Model NameCPCD30
Max. Unloaded Speed21 km/h
Loaded Lowering Speed420 mm/s
Unloaded Lifting Speed480 mm/s
Unloaded Lowering Speed400 mm/s
Max. Speed1700-1900 r/min
Original Headline Specs
Rated Capacity3,500 kg
Rated Capacity (description)Designed to safely handle pallets, machinery, construction materials, and industrial goods with excellent lifting stability.
Efficient PowertrainXinchai 4D27G31 Engine
Efficient Powertrain (description)Reliable LPG/Gasoline engine delivering dependable power, fuel efficiency, and smooth performance for everyday operations.
Fast Handling Performance20–21 km/h Travel Speed
Fast Handling Performance (description)High travel speed and responsive hydraulics improve productivity during loading, unloading, and warehouse transport.
Heavy-Duty Construction4,250 kg Operating Weight
Heavy-Duty Construction (description)Durable frame and reinforced chassis ensure stability, long service life, and reliable operation under demanding workloads.
Need the Full Technical Catalog?
Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
