XG6203P
XGMA • Compactor

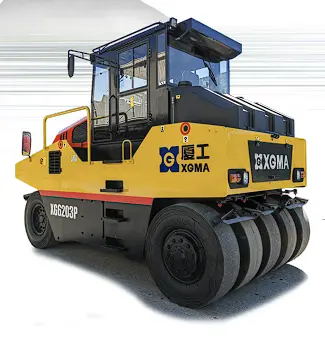

The XG6203P is a 20-ton pneumatic tire roller designed for asphalt compaction, road construction, and pavement finishing applications. Equipped with a 110 kW diesel engine and a wide 2,260 mm compaction width, it delivers uniform pressure distribution, excellent surface sealing performance, and high compaction efficiency for highways, airports, industrial roads, and municipal infrastructure projects.
Starting from
Call our sales team for pricing
Class
20 T class
Drum Width
2,260 mm
Engine Power (kW)
110 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class20 T class
Dimensions & Weights
Operating Weight20,000 kg
Min. Turning Radius7,800 mm
Engine
Engine ModelSC7H150G2
Engine Power (kW)110 kW
Engine Power (HP)148 HP
Rated Engine Speed2,200 rpm
Performance
Power-to-Weight5.5 kW/T
Compactor Specifications
Drum Width2,260 mm
Ground Pressure160 kPa
Original Values (as stated)
Ground Unit Pressure160 kPa - 300 kPa
Original Headline Specs
High Compaction Capacity20,000 kg Operating Weight
High Compaction Capacity (description)Heavy-duty operating weight provides strong compaction force for achieving high-density asphalt and base layers.
Wide Compaction Coverage2,260 mm Compaction Width
Wide Compaction Coverage (description)Wide rolling width increases productivity by covering more surface area with fewer passes.
Adjustable Ground Pressure160–300 kPa
Adjustable Ground Pressure (description)Pneumatic tire design delivers flexible contact pressure for superior sealing and uniform compaction results.
Powerful Diesel Engine110 kW @ 2,200 rpm
Powerful Diesel Engine (description)Reliable engine performance ensures consistent power output and efficient operation on demanding construction sites.
