XG620H
XGMA • Compactor
The XG620H is a premium 20-ton single drum vibratory roller engineered for large-scale infrastructure, highway construction, mining haul roads, and heavy compaction projects. With a 20,000 kg operating weight, 11,200 kg front drum weight, and industry-leading 515 N/cm static line load, the XG620H provides exceptional compaction depth, faster job completion, and superior surface density on demanding applications.
Starting from
Call our sales team for pricing
Class
20 T class
Drum Width
2,130 mm
Static Linear Load
515 N/cm
Engine Power (kW)
140 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class20 T class

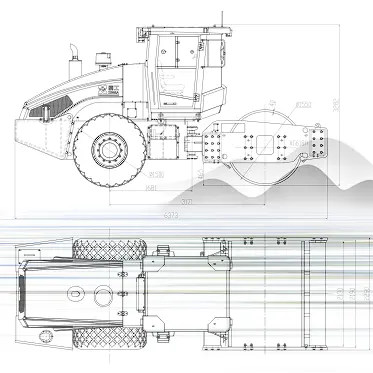

Dimensions & Weights
Operating Weight20,000 kg
Overall Length6,254 mm
Overall Width2,332 mm
Overall Height3,232 mm
Engine
Engine MakeShangcai
Engine ModelSC7H190.2G2
Engine Power (kW)140 kW
Engine Power (HP)188 HP
Rated Engine Speed2,200 rpm
Performance
Power-to-Weight7 kW/T
Compactor Specifications
Drum Width2,130 mm
Drum Diameter1,550 mm
Static Linear Load515 N/cm
Front Drum Weight11,200 kg
Original Headline Specs
Maximum Heavy-Duty Compaction20,000 kg Operating Weight
Maximum Heavy-Duty Compaction (description)Built for large-scale projects requiring deep and efficient compaction performance.
Industry-Leading Drum Pressure515 N/cm Static Line Load
Industry-Leading Drum Pressure (description)Produces superior compaction density and stronger foundation stability with fewer passes.
High-Power Performance140 kW Engine Output
High-Power Performance (description)Delivers reliable power, excellent gradeability, and consistent productivity in challenging environments.
Enhanced Productivity11,200 kg Drum Weight • 2,130 mm Width
Enhanced Productivity (description)Combines high drum mass and wide coverage for faster compaction cycles and improved efficiency.
