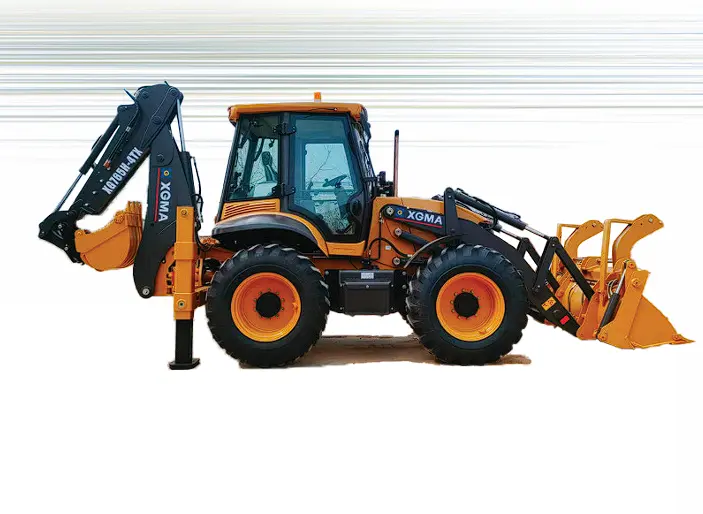

XG765H-4TX

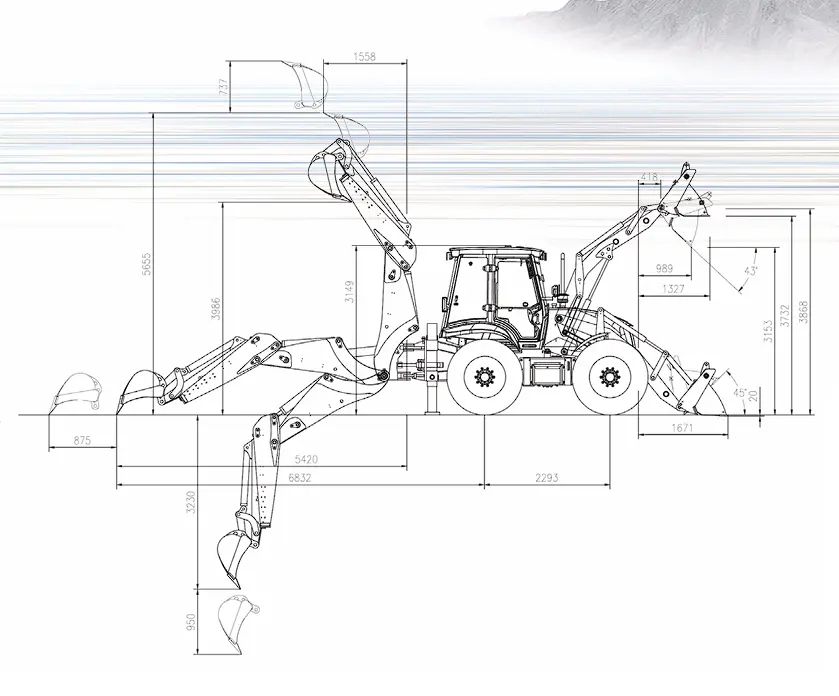

XG765H-4TX view 2

XG765H-4TX

XGMA • Backhoe Loader

The XGMA XG765H-4TX is a high-performance backhoe loader engineered to maximize productivity across construction, infrastructure, mining support, agriculture, and municipal maintenance applications. Combining powerful loading and excavation capabilities in a single machine, it efficiently handles trenching, material handling, site preparation, and utility installation with ease. Powered by a robust 75 kW diesel engine producing 400 N·m of maximum torque, the XG765H-4TX delivers reliable performance, responsive hydraulics, and excellent fuel efficiency for demanding daily operations. Featuring a 1.2 m³ front loader bucket and a 0.30 m³ backhoe bucket, it offers exceptional versatility while reducing the need for multiple machines. With an operating weight of 9,120 kg, a maximum digging depth of 3,820 mm, and a spacious ergonomic operator cabin, the XG765H-4TX provides outstanding stability, operator comfort, and long-term durability, making it an ideal solution for contractors seeking efficiency, reliability, and lower operating costs.

Starting from
Call our sales team for pricing
Class
9.1 T class
Bucket Capacity
1.2 m³
Backhoe Bucket Capacity
0.3 m³
Engine Power (kW)
75 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class9.1 T class

Dimensions & Weights

Operating Weight9,120 kg
Payload / Rated Load2,500 kg
Overall Length6,450 mm
Overall Width2,490 mm
Overall Height3,465 mm
Wheelbase2,335 mm
Min. Ground Clearance400 mm
Min. Turning Radius6,581 mm

Engine

Engine Power (kW)75 kW
Engine Power (HP)101 HP
Max. Torque400 N·m

Performance

Power-to-Weight8.2 kW/T

Backhoe Loader Specifications

Bucket Capacity1.2 m³
Backhoe Bucket Capacity0.3 m³
Breakout / Digging Force38 kN
Dumping Height2,807 mm
Dumping Reach870 mm
Max. Digging Depth3,820 mm
Max. Traction76 kN

Additional Specs

Cab To Ground (mm)3000
Max. Speed2200 r/min
Min. Fuel Consumption< 230 g/km.h
Overall Operating Weight9120 kg
Bucket Digging Depth17 mm
Swing Angle of Excavator Grab180°
Rated Loader of Axle8/18.5t
Digging Power44 kN
Steering Angle±36°
(no name)

Original Headline Specs

Engine Power75 kW Diesel Engine • 400 N·m Torque
Engine Power (description)Powered by a high-performance 75 kW diesel engine delivering 400 N·m of maximum torque, the XG765H-4TX provides dependable power for heavy-duty loading and excavation while maintaining excellent fuel efficiency and reliable day-to-day operation.
Dual Working Capacity1.2 m³ Loader Bucket • 0.30 m³ Backhoe Bucket
Dual Working Capacity (description)Equipped with a large 1.2 m³ front loader bucket and a 0.30 m³ backhoe bucket, the XG765H-4TX performs loading, digging, trenching, and material handling with a single machine, increasing jobsite productivity and reducing equipment costs.
Operating Weight9,120 kg
Operating Weight (description)The 9,120 kg operating weight provides exceptional stability during lifting, loading, and excavation. Its well-balanced chassis improves traction and machine control, ensuring confident operation on uneven terrain and demanding worksites.
Excavation Performance3,820 mm Maximum Digging Depth
Excavation Performance (description)With a maximum digging depth of 3,820 mm and a lifting capacity of 1,220 kg at maximum digging radius, the XG765H-4TX is well suited for foundation work, pipeline installation, drainage projects, and general earthmoving applications requiring both reach and lifting performance.

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
