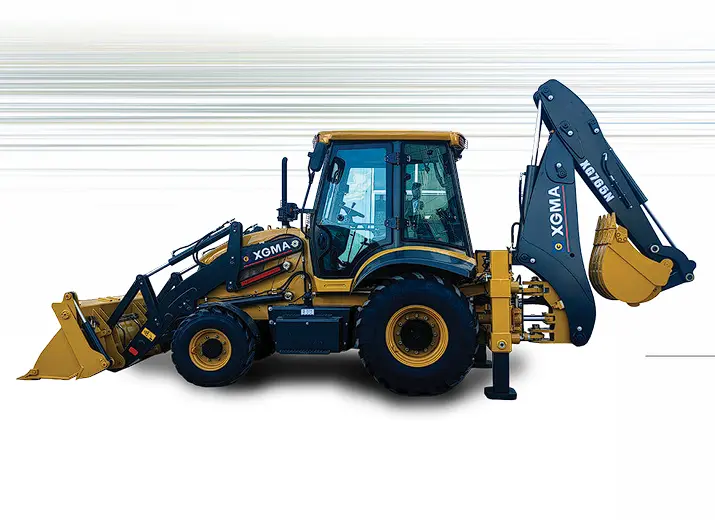

XG765N

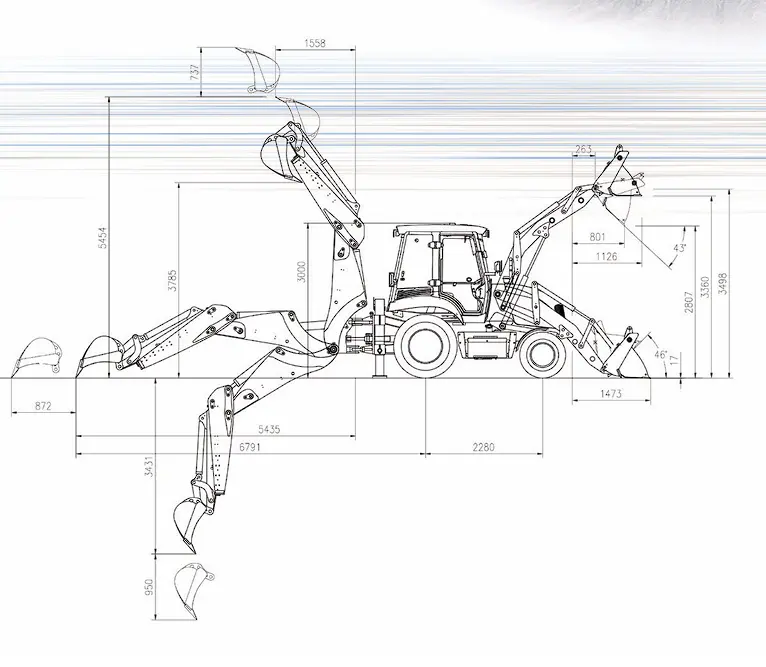

XG765N view 2

XG765N

XGMA • Backhoe Loader

The XGMA XG765N is a versatile backhoe loader engineered to deliver exceptional performance across construction, infrastructure, agriculture, and municipal maintenance projects. Combining the capabilities of a wheel loader and an excavator, it offers an efficient all-in-one solution for loading, trenching, digging, and material handling applications. Powered by a 75 kW diesel engine, the XG765N provides strong breakout force, responsive hydraulic performance, and reliable fuel efficiency for demanding daily operations. Its 1.0 m³ front loader bucket and 0.30 m³ backhoe bucket enable operators to perform a wide variety of tasks without changing machines, improving productivity and reducing operating costs. Designed with a spacious operator cabin, ergonomic controls, and a durable chassis, the XG765N ensures comfort, stability, and long-term reliability. Whether working on construction sites or utility projects, the XG765N delivers the versatility, performance, and efficiency professionals require.

Starting from
Call our sales team for pricing
Class
8.2 T class
Bucket Capacity
1 m³
Backhoe Bucket Capacity
0.3 m³
Engine Power (kW)
75 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class8.2 T class

Dimensions & Weights

Operating Weight8,200 kg
Payload / Rated Load2,500 kg
Overall Length6,130 mm
Overall Width2,245 mm
Overall Height3,465 mm
Wheelbase2,280 mm
Min. Ground Clearance400 mm
Min. Turning Radius6,581 mm

Engine

Engine Power (kW)75 kW
Engine Power (HP)101 HP
Max. Torque400 N·m

Performance

Power-to-Weight9.1 kW/T

Backhoe Loader Specifications

Bucket Capacity1 m³
Backhoe Bucket Capacity0.3 m³
Breakout / Digging Force38 kN
Dumping Height2,807 mm
Dumping Reach801 mm
Max. Digging Depth3,424 mm
Max. Traction76 kN

Original Values (as stated)

Backhoe Max. Digging Depth3424 mm /4381 mm(telescopic boom)

Additional Specs

Cab To Ground (mm)3000
Max. Speed2200 r/min
Min. Fuel Consumption< 230 g/km.h
Overall Operating Weight8200 kg
Bucket Digging Depth17 mm
Swing Angle of Excavator Grab180°
Rated Loader of Axle8/18.5t
Digging Power44 kN
Steering Angle±36°
(no name)

Original Headline Specs

Engine Power75 kW Diesel Engine
Engine Power (description)Equipped with a reliable 75 kW engine, the XG765N delivers strong performance for both loading and excavation tasks. Its high torque output ensures efficient operation under heavy workloads while maintaining dependable fuel economy and low operating costs.
Dual Working Capacity1.0 m³ Loader Bucket + 0.30 m³ Backhoe Bucket
Dual Working Capacity (description)Combining a 1.0 m³ front loader bucket with a 0.30 m³ backhoe bucket, the XG765N performs loading, trenching, excavation, and material handling using a single machine. This versatility reduces equipment requirements and improves overall jobsite efficiency.
Operating Weight8,200 kg
Operating Weight (description)With an operating weight of 8,200 kg, the XG765N provides excellent stability during lifting, loading, and excavation. Its balanced chassis improves traction and machine control while maintaining maneuverability across challenging terrain and confined work areas.
Excavation Performance3,424 mm Digging Depth (4,381 mm with Telescopic Boom)
Excavation Performance (description)With a maximum travel speed of 30 km/h, electric control shift transmission, and a minimum turning radius of 1,930 mm, the XG8125WH offers excellent mobility between jobsites while maintaining superior maneuverability and operational efficiency in confined work areas.
