XG8075WS

XGMA • Excavator

The XGMA XG8075WS is a compact wheeled excavator designed to deliver reliable performance, excellent mobility, and outstanding versatility for construction, municipal infrastructure, utility installation, and road maintenance projects. Powered by a fuel-efficient 48 kW Yuchai diesel engine, it provides smooth hydraulic performance and dependable power for excavation, trenching, grading, and material handling tasks. Its 0.30 m³ bucket and four-wheel-drive system enable efficient operation across various terrain conditions while maintaining excellent maneuverability in confined urban environments. With a travel speed of up to 28 km/h, the XG8075WS can quickly move between jobsites, reducing downtime and improving operational efficiency. Built with a durable structure, ergonomic operator cabin, and easy maintenance access, the XG8075WS offers long-term reliability, lower operating costs, and compatibility with a wide range of hydraulic attachments, making it an ideal solution for contractors seeking productivity, flexibility, and dependable performance in everyday excavation applications.

Starting from
Call our sales team for pricing
Class
6.6 T class · Wheeled
Bucket Capacity
0.3 m³
Operating Weight
6,600 kg
Engine Power (kW)
48 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class6.6 T class · Wheeled
UndercarriageWheeled
Drive Configuration4WD

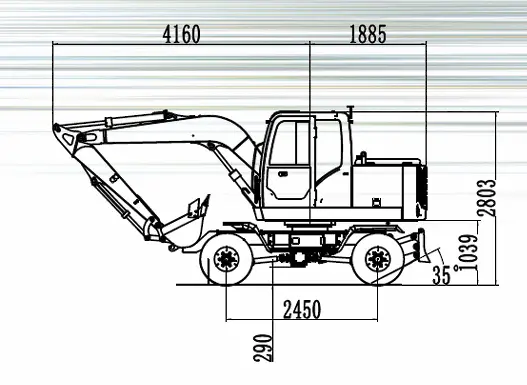

Dimensions & Weights

Operating Weight6,600 kg
Overall Length5,045 mm
Overall Height2,803 mm
Wheelbase2,450 mm
Min. Turning Radius1,930 mm

Engine

Engine MakeYuchai
Engine ModelYC4FA30
Engine Power (kW)48 kW
Engine Power (HP)64 HP
Rated Engine Speed2,200 rpm
Max. Torque266 N·m

Performance

Max. Travel Speed28 km/h
Gradeability35°
Fuel Tank Capacity120 L
Power-to-Weight7.3 kW/T

Excavator Specifications

Bucket Capacity0.3 m³
Swing Speed12.5 rpm
Hydraulic Tank Capacity120 L
Tire Spec8.25-16

Additional Specs

Main Pump2 Plunger Pumps
Steering Pump1 Gear Pump
Pilot Pump1 Gear Pump
Shift ModelMechanical Shift
Max. Main Pump Flow2x60.5
Front Axle Swing Range±7°
Braking SystemHub type Air Brake

Original Headline Specs

Engine Power48 kW Yuchai YC4FA30 Diesel Engine
Engine Power (description)Powered by a dependable 48 kW Yuchai diesel engine producing 266 N·m of torque, the XG8075WS delivers reliable performance, responsive hydraulic operation, and excellent fuel efficiency for construction, municipal, and utility projects.
Bucket Capacity0.3 m³
Bucket Capacity (description)The excavator's bucket capacity is optimized for trenching, excavation, and material loading applications. Its efficient bucket design improves digging productivity while reducing cycle times for maximum jobsite efficiency.
Four-Wheel Drive System4WD with Mechanical Shift
Four-Wheel Drive System (description)Equipped with a durable four-wheel-drive system and mechanical transmission, the XG8075WS offers excellent traction, maneuverability, and stability on uneven terrain, making it well suited for urban worksites and off-road applications.

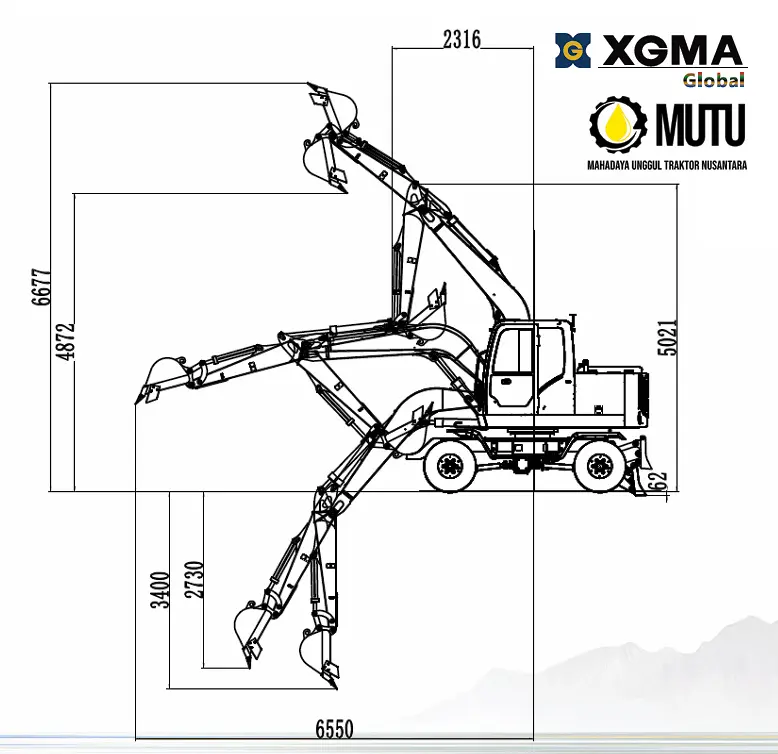

Maximum Digging DepthApprox. 3.4 m
Maximum Digging Depth (description)The XG8075WS offers a digging depth of approximately 3.4 meters, allowing operators to efficiently perform trenching, foundation work, drainage installation, and general excavation while maintaining excellent stability and control.
