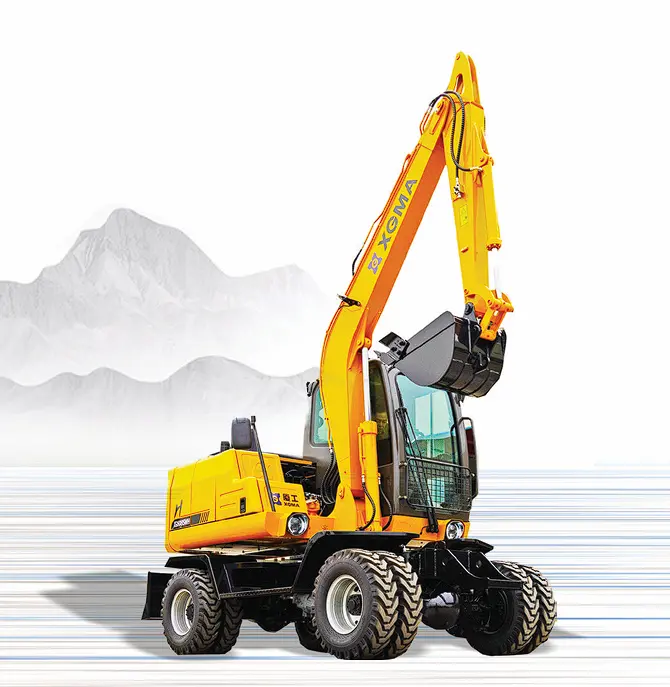

XG8105WJ

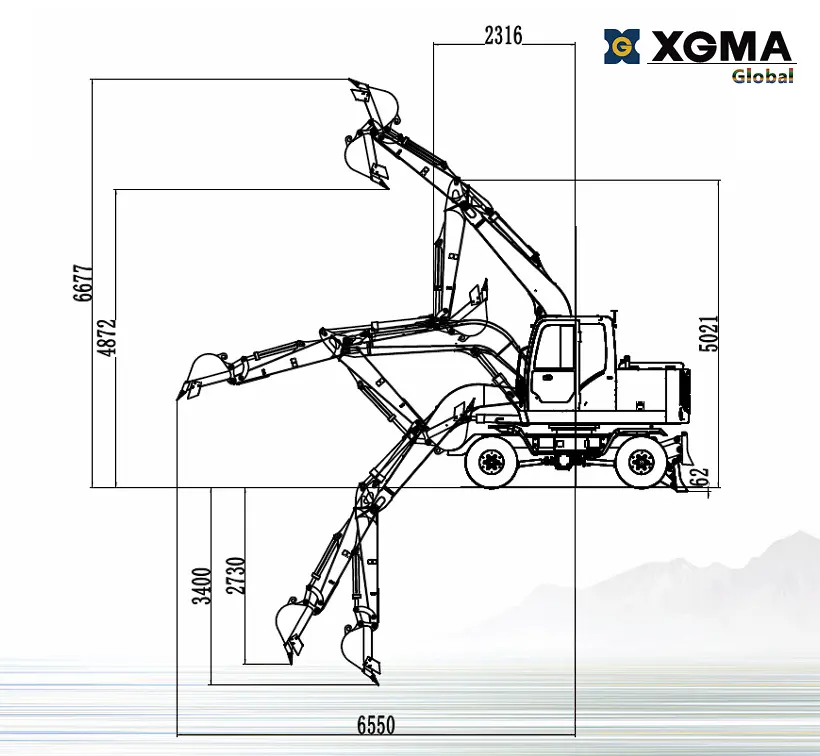

XG8105WJ view 2

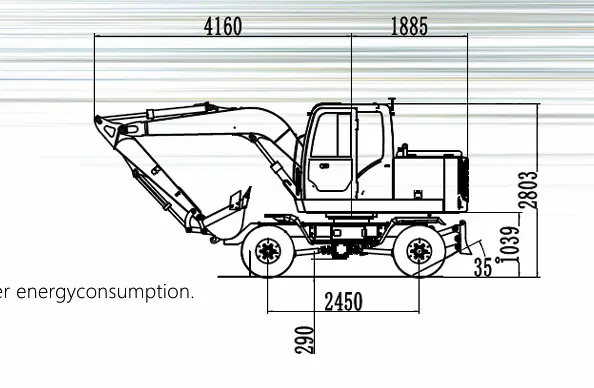

XG8105WJ view 3

XG8105WJ

XGMA • Excavator

The XGMA XG8105WJ is a high-performance wheeled excavator engineered for demanding construction, municipal infrastructure, utility installation, and road maintenance projects. Powered by a reliable 55 kW Yuchai YC4DK75-T303 diesel engine, it delivers strong torque, responsive hydraulic performance, and excellent fuel efficiency for continuous daily operation. With an operating weight of 8,300 kg, the machine provides exceptional stability while maintaining the mobility advantages of a wheeled excavator. Its advanced load-sensing hydraulic system ensures smooth, precise control for digging, lifting, grading, and material handling tasks. A maximum travel speed of 30 km/h enables fast relocation between jobsites, reducing transport time and improving productivity. Designed with operator comfort, durability, and easy maintenance in mind, the XG8105WJ supports a wide range of hydraulic attachments, making it a versatile and cost-effective solution for contractors requiring dependable performance across diverse working environments.

Starting from
Call our sales team for pricing
Class
8.3 T class · Wheeled
Bucket Capacity
0.3 m³
Operating Weight
8,300 kg
Engine Power (kW)
55 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class8.3 T class · Wheeled
UndercarriageWheeled
Drive Configuration4WD

Dimensions & Weights

Operating Weight8,300 kg
Overall Length6,476 mm
Overall Height2,803 mm
Wheelbase2,450 mm
Min. Turning Radius1,930 mm

Engine

Engine MakeYuchai
Engine ModelYC4DK75-T303
Engine Power (kW)55 kW
Engine Power (HP)74 HP
Rated Engine Speed2,200 rpm
Max. Torque303 N·m

Performance

Max. Travel Speed30 km/h
Gradeability35°
Fuel Tank Capacity120 L
Power-to-Weight6.6 kW/T

Excavator Specifications

Bucket Capacity0.3 m³
Swing Speed12.5 rpm
Hydraulic System Pressure24 MPa
Max. Main Pump Flow169.6 L/min
Hydraulic Tank Capacity120 L
Tire Spec9.0-16

Additional Specs

Total Weight8300 kg
Main PumpLoad Sensing Pump
Pilot PumpPressure-Relief Valve
Shift ModelElectric Control Shift
Front Axle Swing Range±7°
Braking SystemHub type Air Brake

Original Headline Specs

Engine Power55 kW Yuchai YC4DK75-T303
Engine Power (description)The XG8105WJ is powered by a dependable 55 kW Yuchai diesel engine producing up to 303 N·m of torque. It delivers reliable performance, strong pulling power, and excellent fuel efficiency, making it suitable for continuous operation in demanding construction and infrastructure projects.
Operating Weight8,300 kg
Operating Weight (description)With an operating weight of 8,300 kg, the XG8105WJ provides excellent stability for excavation, lifting, and material handling while retaining the flexibility and mobility expected from a wheeled excavator. Its balanced design ensures confident operation across various jobsite conditions.
Load-Sensing Hydraulic System169.6 L/min Main Pump Flow
Load-Sensing Hydraulic System (description)The advanced load-sensing hydraulic system delivers a maximum pump flow of 169.6 L/min with a 24 MPa operating pressure, providing smooth, responsive control for precise digging, lifting, grading, and attachment operation while maximizing hydraulic efficiency.
Travel Speed30 km/h
Travel Speed (description)With a maximum travel speed of 30 km/h, electric control shift transmission, and a compact turning radius of 1,930 mm, the XG8105WJ moves efficiently between work locations without additional transport equipment, improving productivity and reducing operational downtime.

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
