Fleet>Excavator>XG8125WH

XG8125WH

Name: XG8125WH
Brand: XGMA
Availability: InStock

XGMA • Excavator

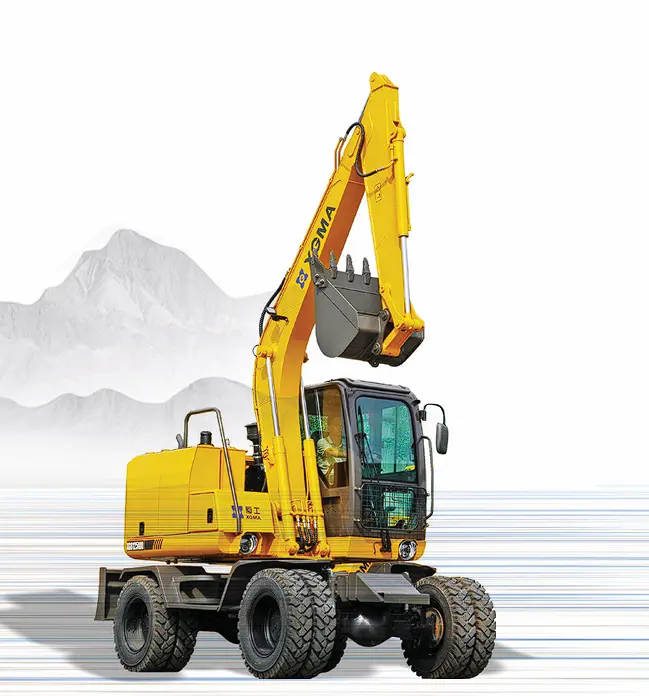

The XGMA XG8125WH is a high-performance wheeled excavator engineered for demanding construction, municipal infrastructure, utility installation, and road maintenance projects. Powered by a reliable 66 kW Yuchai YC4DK90-T304 diesel engine, it delivers strong torque, responsive hydraulic performance, and excellent fuel efficiency for continuous daily operation. With an operating weight of 9000 kg, the machine provides exceptional stability while maintaining the mobility advantages of a wheeled excavator. Its advanced load-sensing hydraulic system ensures smooth, precise control for digging, lifting, grading, and material handling tasks. A maximum travel speed of 30 km/h enables fast relocation between jobsites, reducing transport time and improving productivity. Designed with operator comfort, durability, and easy maintenance in mind, the XG8125WH supports a wide range of hydraulic attachments, making it a versatile and cost-effective solution for contractors requiring dependable performance across diverse working environments.

Starting from

Call our sales team for pricing

Class

9 T class · Wheeled

Bucket Capacity

0.45 m³

Operating Weight

9,000 kg

Engine Power (kW)

66 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class9 T class · Wheeled

UndercarriageWheeled

Drive Configuration4WD

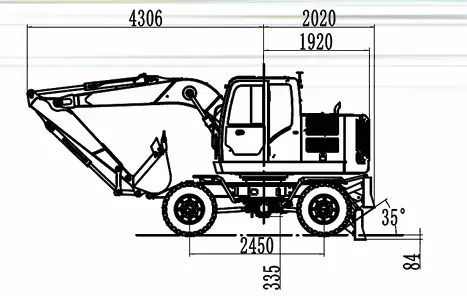

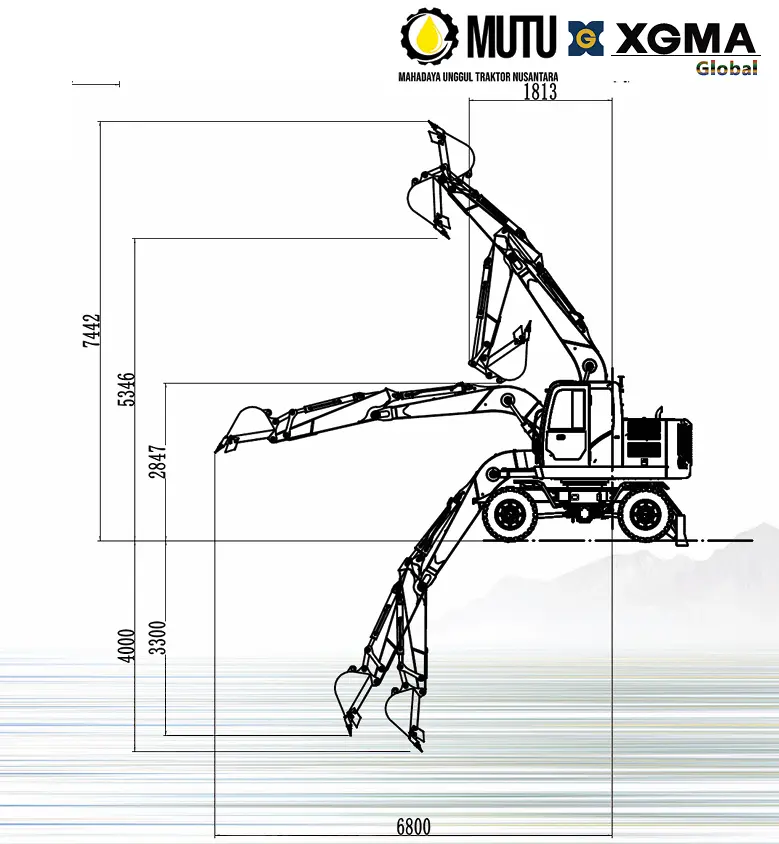

Dimensions & Weights

Operating Weight9,000 kg

Overall Length6,326 mm

Overall Height5,346 mm

Wheelbase2,450 mm

Min. Turning Radius1,930 mm

Engine

Engine MakeYuchai

Engine ModelYC4DK90-T304

Engine Power (kW)66 kW

Engine Power (HP)89 HP

Rated Engine Speed2,000 rpm

Max. Torque358 N·m

Performance

Max. Travel Speed30 km/h

Gradeability35°

Fuel Tank Capacity166 L

Power-to-Weight7.3 kW/T

Excavator Specifications

Bucket Capacity0.45 m³

Swing Speed12.5 rpm

Hydraulic System Pressure28 MPa

Max. Main Pump Flow210 L/min

Hydraulic Tank Capacity120 L

Tire Spec8.25-20

Additional Specs

Main PumpLoad Sensing Pump

Pilot PumpPressure-Relief Valve

Shift ModelElectric Control Shift

Front Axle Swing Range±7°

Braking SystemHydraulic Brake

Original Headline Specs

Engine Power66 kW Yuchai YC4DK90-T304 Diesel Engine

Engine Power (description)Powered by a robust 66 kW Yuchai diesel engine producing 358 N·m of maximum torque, the XG8125WH delivers reliable performance, strong digging power, and excellent fuel efficiency for demanding construction, infrastructure, and utility applications.

Bucket Capacity0.45 m³

Bucket Capacity (description)Equipped with a 0.45 m³ standard bucket, the XG8125WH efficiently handles excavation, trenching, and material loading tasks. Its larger bucket capacity improves productivity while maintaining smooth and precise hydraulic control throughout the work cycle.

Advanced Hydraulic SystemLoad-Sensing Pump • 210 L/min • 28 MPa

Advanced Hydraulic System (description)The load-sensing hydraulic system provides a maximum pump flow of 210 L/min with 28 MPa operating pressure, delivering smooth, responsive control and consistent hydraulic power for digging, lifting, grading, and attachment operation.

Travel Performance30 km/h • Electric Control Shift

Travel Performance (description)With a maximum travel speed of 30 km/h, electric control shift transmission, and a minimum turning radius of 1,930 mm, the XG8125WH offers excellent mobility between jobsites while maintaining superior maneuverability and operational efficiency in confined work areas.
