XG8135EL

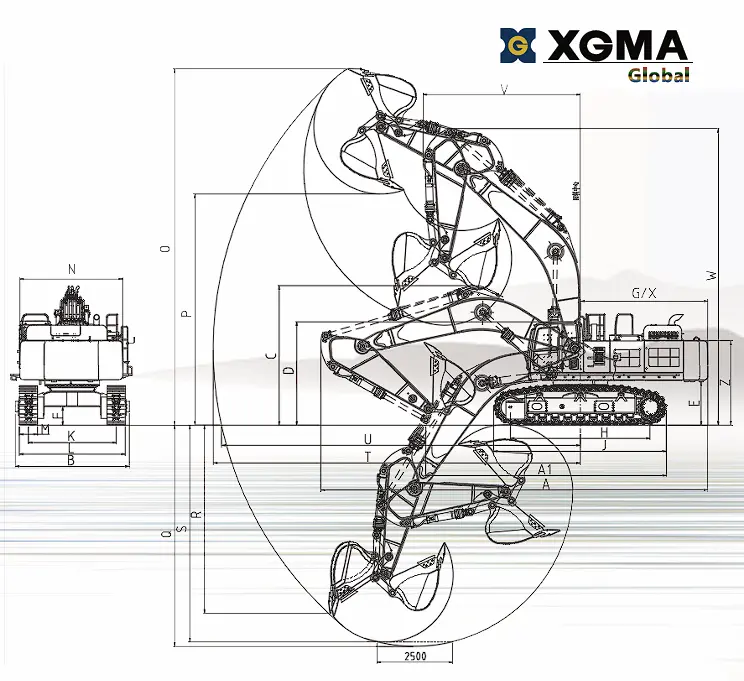

XG8135EL view 2

XG8135EL

XGMA • Excavator

The XGMA XG8135EL is a flagship 125-ton mining crawler excavator engineered for the most demanding large-scale mining, quarrying, and mass excavation operations. Powered by the proven Cummins QSK23 engine, delivering 574 kW of net power, the XG8135EL offers exceptional horsepower and torque for continuous heavy-duty production. Its premium Kawasaki K7V280SH hydraulic pump and KMX36NA control valve provide fast hydraulic response, smooth multi-function control, and outstanding digging performance. Equipped with a massive 7.6–10.0 m³ heavy-duty bucket, reinforced boom and arm, and an ultra-heavy undercarriage, the machine is built to maximize loading efficiency, reliability, and service life under extreme working conditions. Combining world-class components with a durable structural design, the XG8135EL delivers exceptional productivity, reduced downtime, and lower operating costs, making it an ideal solution for high-output mining and heavy earthmoving applications.

Starting from
Call our sales team for pricing
Class
125 T class · Tracked
Bucket Capacity
7.6 m³
Operating Weight
125,000 kg
Engine Power (kW)
574 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class125 T class · Tracked
UndercarriageTracked

Dimensions & Weights

Operating Weight125,000 kg
Overall Length14,882 mm
Overall Width5,665 mm
Overall Height6,350 mm
Min. Ground Clearance1,070 mm

Engine

Engine MakeCummins
Engine ModelQSK23
Engine Power (kW)574 kW
Engine Power (HP)770 HP
Rated Engine Speed2,100 rpm

Performance

Power-to-Weight4.6 kW/T

Excavator Specifications

Bucket Capacity7.6 m³
Boom Length7,550 mm
Arm Length3,400 mm
Max. Digging Depth8,110 mm
Max. Digging Reach13,870 mm
Max. Digging Height12,525 mm
Dumping Height7,990 mm
Track Shoe Width4,600 mm

Original Values (as stated)

Bucket Capacity7.6-10 m³

Additional Specs

Pump ManufacturerKawasaki
Pump ModelK7V280SH
Valve ManufacturerKawasaki
Valve ModelKMX36NA
Overall Height (cab)4236 mm
Tail Swing Radius4987 mm
Ground Track Length5109 mm
Track Length6500 mm
Gauge3900 mm
Track Shoe Width700 mm
Turning Table Width3534 mm
Max. Digging Distance at Plane13870 mm
Min. Swing Radius6772 mm
Max. Height at Minimum Swing Radius10675 mm
Distance From Center of Swing to Rear End4987 mm
Track Grouses Thickness52 mm
Counterweight Height3818 mm
Ground Contact Length (in transport)8520 mm

Original Headline Specs

Ultra-Class Mining Excavator125 Ton Operating Weight
Ultra-Class Mining Excavator (description)Built for the world's toughest mining applications, the XG8135EL provides outstanding machine stability, superior lifting capability, and exceptional structural durability, enabling reliable operation in continuous high-production environments.
High-Output Powertrain574 kW Cummins QSK23 Engine
High-Output Powertrain (description)Powered by the renowned Cummins QSK23 engine producing 574 kW at 2,100 rpm, the XG8135EL delivers massive horsepower, excellent fuel efficiency, and dependable performance for demanding mining and quarry operations.
Premium Hydraulic SystemK7V280SH Pump & KMX36NA Valve
Premium Hydraulic System (description)Equipped with high-performance Kawasaki hydraulic components, the machine delivers fast cycle times, precise hydraulic control, and exceptional digging efficiency, maximizing productivity during heavy excavation and loading tasks.
Maximum Production Capacity7.6–10.0 m³ Heavy-Duty Bucket
Maximum Production Capacity (description)Featuring a large-capacity bucket with reinforced boom and arm construction, the XG8135EL is optimized for high-volume material handling, enabling faster truck loading cycles and greater production efficiency in large-scale mining operations.
