Fleet>Excavator>XG815EL/FL

XG815EL/FL

Name: XG815EL/FL
Brand: XGMA
Availability: InStock

XGMA • Excavator

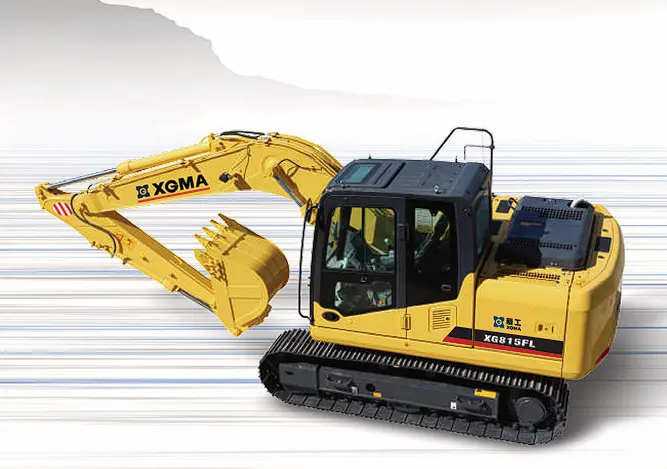

The XGMA XG815EL/FL is a high-performance 14.5-ton crawler excavator engineered for demanding construction, infrastructure, quarrying, and earthmoving applications. Designed to deliver exceptional power, precision, and durability, it is equipped with a reliable Cummins diesel engine producing 86 kW, ensuring strong hydraulic performance and excellent fuel efficiency for continuous operation. Featuring a 0.60–0.75 m³ bucket, the XG815EL/FL provides outstanding excavation efficiency, making it ideal for trenching, foundation work, material handling, and large-scale site development. Its reinforced boom and undercarriage offer excellent stability and digging performance, while the spacious ergonomic cabin enhances operator comfort and visibility during extended working hours. Built for reliability and easy maintenance, the XG815EL/FL supports a wide range of hydraulic attachments, making it a versatile and cost-effective solution for contractors seeking maximum productivity, reduced downtime, and long-term operating value.

Starting from

Call our sales team for pricing

Class

14.5 T class · Tracked

Bucket Capacity

0.6 m³

Operating Weight

14,500 kg

Engine Power (kW)

86 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class14.5 T class · Tracked

UndercarriageTracked

Dimensions & Weights

Operating Weight14,500 kg

Engine

Engine MakeCummins

Engine Model4BTAA3.9

Engine Power (kW)86 kW

Engine Power (HP)115 HP

Rated Engine Speed2,200 rpm

Performance

Max. Travel Speed5.3 km/h

Gradeability70%

Fuel Tank Capacity247 L

Power-to-Weight5.9 kW/T

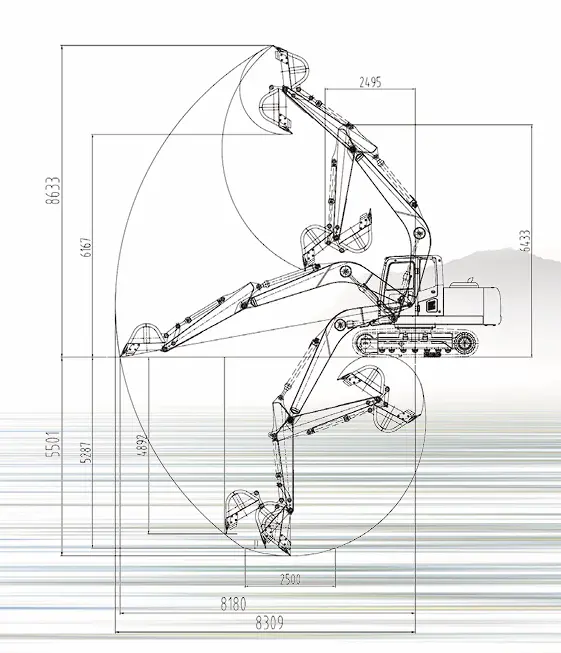

Excavator Specifications

Bucket Capacity0.6 m³

Breakout / Digging Force100 kN

Boom Length4,600 mm

Arm Length2,500 mm

Swing Speed12 rpm

Ground Pressure39 kPa

Hydraulic Tank Capacity130 L

Original Values (as stated)

Travel Speed5.3 km/h - 3.3 km/h

Additional Specs

Engine ModelQSF3.8

Travel Speed5.3 km/h - 3.3 km/h

Bucket Capacity0.60–0.75 m³

Original Headline Specs

Machine Class14.5 Ton Crawler Excavator

Machine Class (description)Built in the 14.5-ton class, the XG815EL/FL offers the ideal combination of power, stability, and maneuverability for medium to heavy-duty excavation, infrastructure development, quarry operations, and large-scale earthmoving projects.

Engine Power86 kW Cummins Diesel Engine

Engine Power (description)Powered by a proven Cummins diesel engine delivering 86 kW at 2,200 rpm, the XG815EL/FL provides reliable power, excellent fuel efficiency, and responsive hydraulic performance for demanding excavation and material handling applications.

Bucket Capacity0.60–0.75 m³

Bucket Capacity (description)The large bucket capacity enables efficient loading, trenching, and excavation while reducing cycle times. Its optimized bucket design maximizes productivity when handling soil, aggregates, and other bulk materials in demanding work environments.

Bucket Digging Force100 kN

Bucket Digging Force (description)Delivering an impressive bucket digging force of 100 kN (ISO), the XG815EL/FL provides outstanding breakout performance for compacted soil, rock, and heavy excavation tasks. Combined with its reinforced boom and hydraulic system, it ensures consistent productivity in challenging jobsite conditions.

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
