Fleet>Excavator>XG822FL

XG822FL

Name: XG822FL
Brand: XGMA
Availability: InStock

XGMA • Excavator

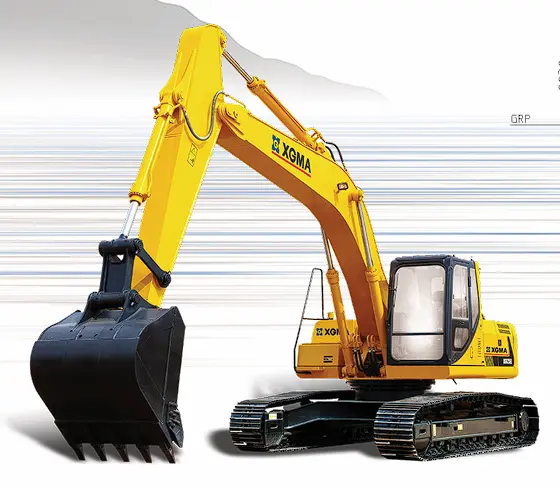

The XGMA XG822FL is a 22.8-ton crawler excavator designed for demanding excavation, infrastructure development, quarry operations, and heavy earthmoving projects. Equipped with either a Cummins QSB7.0 or Isuzu 4HK1X diesel engine, it delivers reliable performance, fuel efficiency, and advanced hydraulic control for continuous operation in challenging environments. Featuring a 1.0 m³ bucket, reinforced structural components, and a durable crawler undercarriage, the XG822FL offers excellent digging performance, lifting capability, and machine stability. Its ergonomic operator cabin and simplified maintenance design help maximize uptime while reducing operator fatigue. Compatible with various hydraulic attachments, the XG822FL provides contractors with a reliable, productive, and cost-effective excavator for medium to heavy-duty applications.

Starting from

Call our sales team for pricing

Class

22.8 T class · Tracked

Bucket Capacity

1 m³

Operating Weight

22,800 kg

Engine Power (kW)

124 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class22.8 T class · Tracked

UndercarriageTracked

Dimensions & Weights

Operating Weight22,800 kg

Engine

Engine MakeCUMMINS

Engine ModelQSB7.0

Engine Power (kW)124 kW

Engine Power (HP)166 HP

Rated Engine Speed1,800 rpm

Performance

Max. Travel Speed5.2 km/h

Gradeability70%

Fuel Tank Capacity420 L

Power-to-Weight5.4 kW/T

Excavator Specifications

Bucket Capacity1 m³

Breakout / Digging Force157 kN

Boom Length5,700 mm

Arm Length2,900 mm

Swing Speed11.7 rpm

Ground Pressure46.5 kPa

Hydraulic Tank Capacity246 L

Original Values (as stated)

Travel Speed5.2 km/h - 3.3 km/h

Additional Specs

ManufacturerIsuzu

Engine Model4HK1X

Rated Power133 kW

Rated Speed2000 r/min

Travel Speed5.2 km/h - 3.5 km/h

Bucket Digging Force157 KN

Original Headline Specs

Machine Class22.8 Ton Crawler Excavator

Machine Class (description)The XG822FL offers enhanced operating stability and lifting performance, making it ideal for demanding construction, infrastructure, mining support, and quarry operations.

Engine Power124 kW Cummins QSB7.0 / 133 kW Isuzu 4HK1X

Engine Power (description)Customers can choose between Cummins and Isuzu powerplants, both delivering dependable performance, responsive hydraulics, and excellent fuel economy for demanding excavation work.

Bucket Capacity1.0 m³

Bucket Capacity (description)The standard 1.0 m³ bucket is optimized for excavation, trenching, and bulk material handling, delivering efficient loading cycles and increased productivity across a wide range of earthmoving applications.

Bucket Digging Force157 kN (ISO)

Bucket Digging Force (description)Producing an ISO bucket digging force of 157 kN, the XG822EL delivers powerful breakout performance for compacted soil, rock, and heavy excavation tasks while maintaining smooth hydraulic control.
