XG836EL

Name: XG836EL
Brand: XGMA
Availability: InStock

XGMA • Excavator

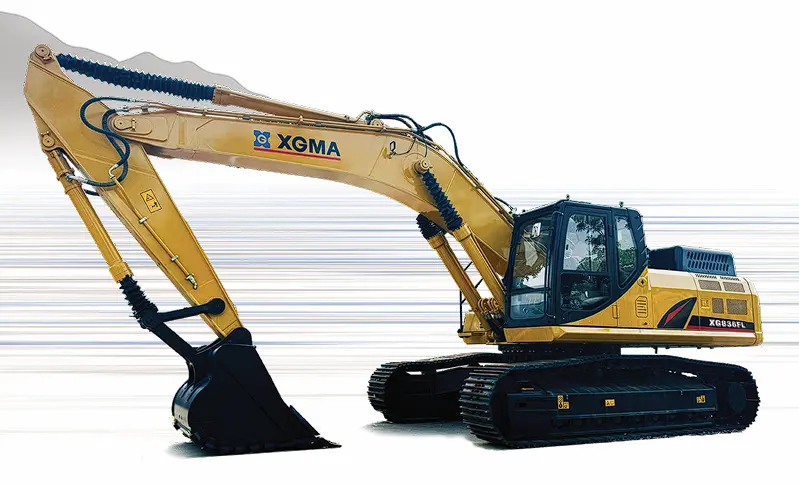

The XGMA XG836EL is a 35-ton crawler excavator designed for demanding earthmoving, quarrying, mining, and large-scale infrastructure projects. Powered by the proven Cummins 6LTAA8.9 engine producing 241 kW, it delivers exceptional digging power, reliable hydraulic performance, and outstanding fuel efficiency for continuous heavy-duty operation. Equipped with a 1.6 m³ bucket, reinforced boom and arm, and a durable undercarriage, the XG836EL provides superior breakout force, high loading efficiency, and excellent machine stability. Its spacious operator cabin, ergonomic controls, and simplified maintenance design help maximize productivity while reducing downtime. Built to withstand the toughest jobsite conditions, the XG836EL is an ideal solution for contractors and fleet owners seeking dependable performance, durability, and lower operating costs.

Starting from

Call our sales team for pricing

Class

35 T class · Tracked

Bucket Capacity

1.6 m³

Operating Weight

35,000 kg

Engine Power (kW)

241 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class35 T class · Tracked

UndercarriageTracked

Dimensions & Weights

Operating Weight35,000 kg

Engine

Engine MakeCummins

Engine ModelCUMMINS 6LTAA8.9

Engine Power (kW)241 kW

Engine Power (HP)323 HP

Rated Engine Speed2,000 rpm

Performance

Max. Travel Speed5.2 km/h

Gradeability70%

Fuel Tank Capacity595 L

Power-to-Weight6.9 kW/T

Excavator Specifications

Bucket Capacity1.6 m³

Breakout / Digging Force227 kN

Boom Length6,470 mm

Arm Length3,185 mm

Swing Speed10.6 rpm

Ground Pressure69.4 kPa

Hydraulic Tank Capacity310 L

Original Values (as stated)

Travel Speed5.2 km/h - 3.3 km/h

Additional Specs

Bucket Digging Force227 KN

Original Headline Specs

Machine Class35 Ton Crawler Excavator

Machine Class (description)Built for large-scale earthmoving, quarrying, and mining operations, the XG836EL/FL delivers exceptional stability, lifting capability, and continuous productivity in demanding heavy-duty applications.

Engine Power241 kW Cummins 6LTAA8.9

Engine Power (description)Powered by a high-output Cummins 6LTAA8.9 diesel engine, the XG836EL delivers dependable power, high torque, and fuel-efficient performance for continuous heavy-duty excavation.

Bucket Capacity1.6 m³

Bucket Capacity (description)The heavy-duty 1.6 m³ bucket enables high-volume excavation and material loading, reducing cycle times while maximizing productivity in demanding work environments.

Bucket Digging Force227 kN (ISO)

Bucket Digging Force (description)With an ISO-rated digging force of 227 kN, the XG836EL delivers exceptional breakout performance for rock excavation, quarry operations, and difficult ground conditions.
