XG852FL

Name: XG852FL
Brand: XGMA
Availability: InStock

XGMA • Excavator

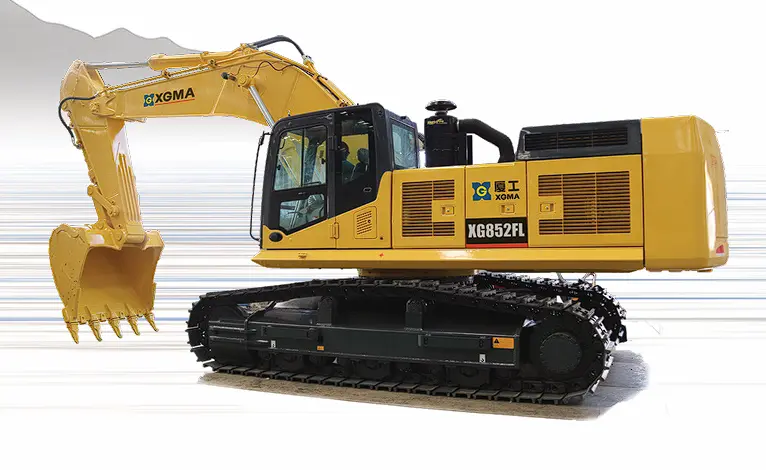

The XGMA XG852FL is a flagship 51.5-ton crawler excavator engineered for the most demanding mining, quarrying, large-scale earthmoving, and heavy infrastructure projects. Powered by the robust 300 kW Isuzu 6WG1 diesel engine, it delivers exceptional hydraulic performance, high torque, and outstanding fuel efficiency for continuous heavy-duty operation. Equipped with a 2.8–3.6 m³ heavy-duty bucket, the XG852FL is designed to maximize loading efficiency, reduce cycle times, and increase productivity in high-volume material handling applications. Its reinforced boom, heavy-duty undercarriage, and optimized hydraulic system provide superior stability, exceptional breakout force, and reliable performance under extreme working conditions. Featuring a spacious operator cabin, intuitive controls, and simplified maintenance access, the XG852FL helps maximize uptime, operator comfort, and long-term operating value, making it the ideal solution for large mining operations and demanding earthmoving contractors.

Starting from

Call our sales team for pricing

Class

51.5 T class · Tracked

Bucket Capacity

2.8 m³

Operating Weight

51,500 kg

Engine Power (kW)

300 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class51.5 T class · Tracked

UndercarriageTracked

Dimensions & Weights

Operating Weight51,500 kg

Engine

Engine MakeIsuzu

Engine Model6WG1

Engine Power (kW)300 kW

Engine Power (HP)402 HP

Rated Engine Speed1,800 rpm

Performance

Max. Travel Speed4.8 km/h

Gradeability70%

Fuel Tank Capacity650 L

Power-to-Weight5.8 kW/T

Excavator Specifications

Bucket Capacity2.8 m³

Breakout / Digging Force298 kN

Boom Length6,560 mm

Arm Length2,550 mm

Swing Speed8.5 rpm

Ground Pressure86 kPa

Hydraulic Tank Capacity335 L

Original Values (as stated)

Travel Speed4.8 km/h - 3.0 km/h

Additional Specs

Bucket Capacity1.6-1.9 m³

Bucket Digging Force298 KN

(no name)

Original Headline Specs

Machine Class51.5 Ton Crawler Excavator

Machine Class (description)As XGMA's heavy-duty 50-ton class excavator, the XG852FL is built for large-scale mining, quarrying, and mass earthmoving operations, delivering exceptional stability, lifting capability, and continuous productivity under the toughest working conditions.

Engine Power300 kW Isuzu 6WG1 Diesel Engine

Engine Power (description)Powered by the proven Isuzu 6WG1 engine producing 300 kW at 1,800 rpm, the XG852FL delivers outstanding horsepower, high torque, and reliable hydraulic performance for maximum productivity and fuel-efficient operation in demanding environments.

Bucket Capacity2.8–3.6 m³ Bucket Capacity

Bucket Capacity (description)Available with bucket capacities ranging from 2.8 to 3.6 m³, the XG852FL is optimized for high-volume excavation and material loading, significantly reducing cycle times and maximizing production in mining and bulk earthmoving applications.

Bucket Digging Force298 kN ISO Bucket Digging Force

Bucket Digging Force (description)Delivering an exceptional ISO-rated bucket digging force of 298 kN, the XG852FL provides superior breakout performance for rock excavation, overburden removal, and other heavy-duty digging applications where maximum power and efficiency are essential.
