XG870EL
XG870EL view 2

XG870EL

XGMA • Excavator

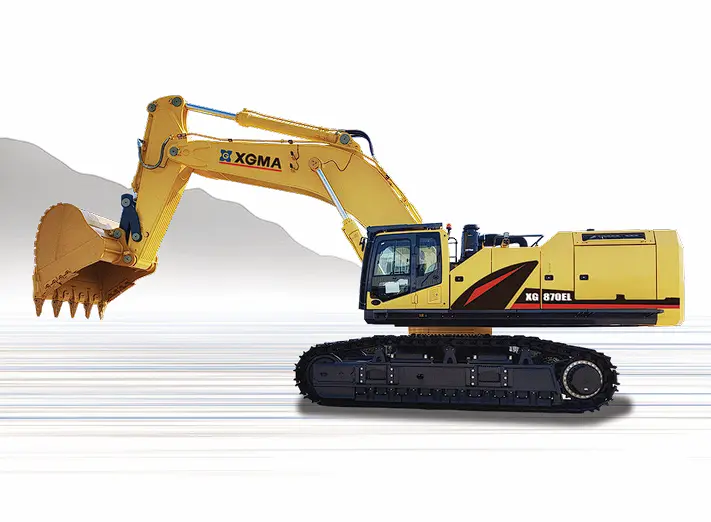

The XGMA XG870EL is a flagship 65-ton crawler excavator engineered for the most demanding mining, quarrying, bulk earthmoving, and heavy infrastructure applications. Powered by the 563 kW Cummins QSM15 engine and equipped with premium Kawasaki hydraulic components, the XG870EL delivers exceptional digging power, fast hydraulic response, and outstanding reliability under continuous heavy-duty operation. Its 4.0–4.2 m³ heavy-duty bucket, reinforced working equipment, and high-strength undercarriage are designed to maximize production while minimizing cycle times in large-scale excavation projects. Featuring a spacious operator cabin, advanced hydraulic control, and easy maintenance access, the XG870EL ensures superior operator comfort, maximum machine uptime, and lower total operating costs. Built for extreme working conditions, it is the ideal solution for mining companies and contractors seeking world-class performance, durability, and productivity.

Starting from
Call our sales team for pricing
Class
65 T class · Tracked
Bucket Capacity
4 m³
Operating Weight
65,000 kg
Engine Power (kW)
563 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class65 T class · Tracked
UndercarriageTracked

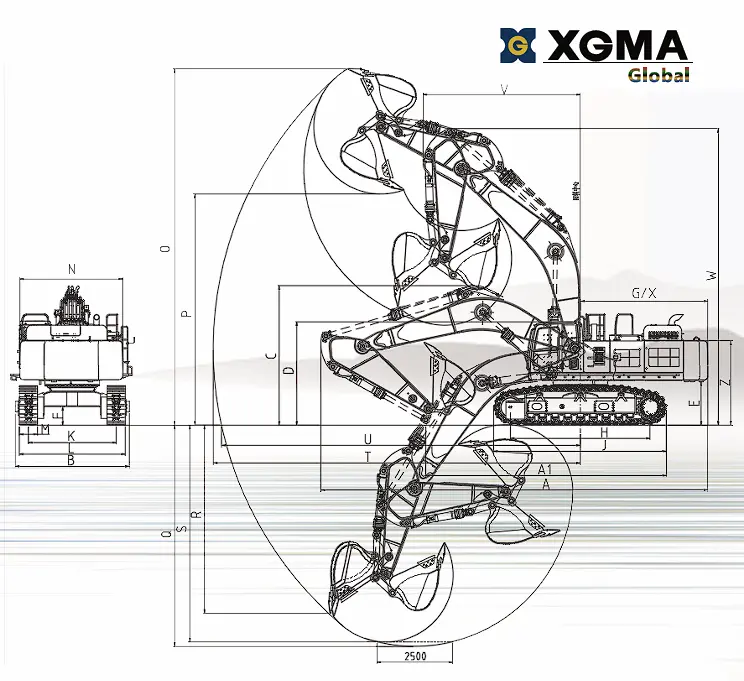

Dimensions & Weights

Operating Weight65,000 kg
Overall Length12,750 mm
Overall Width3,762 mm
Overall Height4,595 mm
Min. Ground Clearance615 mm

Engine

Engine MakeCummins
Engine ModelQSM15
Engine Power (kW)563 kW
Engine Power (HP)755 HP
Rated Engine Speed2,100 rpm

Performance

Power-to-Weight8.7 kW/T

Excavator Specifications

Bucket Capacity4 m³
Boom Length7,000 mm
Arm Length3,000 mm
Max. Digging Depth7,289 mm
Max. Digging Reach12,090 mm
Max. Digging Height11,740 mm
Dumping Height7,610 mm
Track Shoe Width3,490 mm

Original Values (as stated)

Bucket Capacity4.0-4.2 m³

Additional Specs

Pump ManufacturerKawasaki
Pump ModelK7V280
Valve ManufacturerKawasaki
Valve ModelKMX36NA
Overall Height (cab)3405 mm
Tail Swing Radius4200 mm
Ground Track Length4592 mm
Track Length5691 mm
Gauge2890 mm
Track Shoe Width600 mm
Turning Table Width3395 mm
Max. Digging Distance at Plane11820 mm
Min. Swing Radius5182 mm
Max. Height at Minimum Swing Radius9769 mm
Distance From Center of Swing to Rear End4200 mm
Track Grouses Thickness49 mm
Counterweight Height2782 mm
Ground Contact Length (in transport)7923 mm

Original Headline Specs

Ultra Heavy-Duty Class65 Ton Crawler Excavator
Ultra Heavy-Duty Class (description)Built for the most demanding mining and large-scale earthmoving operations, the XG870EL delivers exceptional stability, lifting capability, and continuous high-production performance in extreme working environments.
High-Performance Powertrain563 kW Cummins QSM15 Engine
High-Performance Powertrain (description)Powered by the legendary Cummins QSM15 engine producing 563 kW at 2,100 rpm, the XG870EL provides outstanding horsepower, massive torque, and dependable performance for continuous heavy-duty excavation and loading operations.
Premium Hydraulic SystemKawasaki K7V280 Hydraulic Pump & KMX36NA Main Control Valve
Premium Hydraulic System (description)Featuring premium Kawasaki hydraulic components, the XG870EL delivers fast response, smooth multi-function operation, and high hydraulic efficiency, maximizing productivity while reducing fuel consumption and operator fatigue.
High-Capacity Excavation4.0–4.2 m³ Bucket • 65,000 kg Operating Weight
High-Capacity Excavation (description)Equipped with a large 4.0–4.2 m³ heavy-duty bucket and a robust 65-ton operating weight, the XG870EL is engineered for high-volume excavation, overburden removal, quarry production, and large mining applications where maximum productivity is essential.
