XG899EL

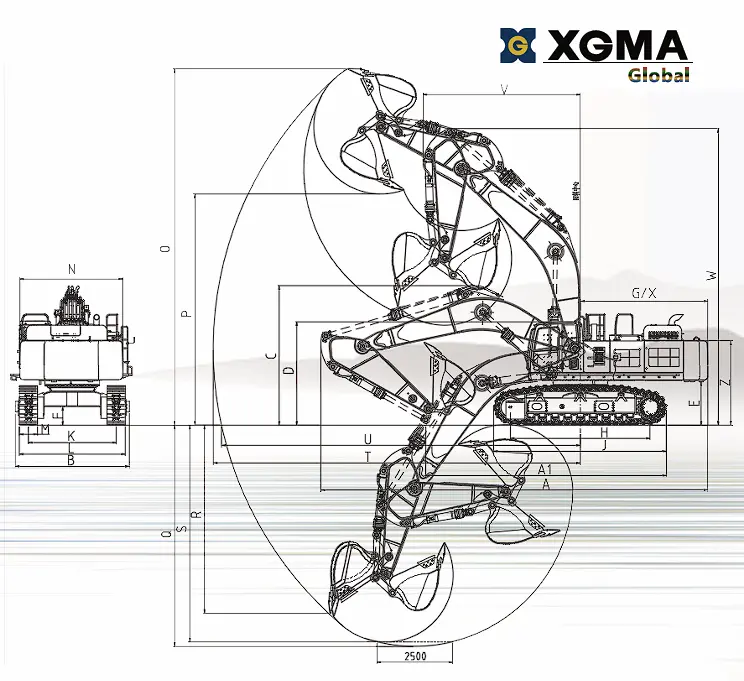

XG899EL view 2

XG899EL

XGMA • Excavator

The XGMA XG899EL is XGMA's flagship 98-ton crawler excavator, purpose-built for ultra-heavy-duty mining, quarrying, and large-scale earthmoving operations. Powered by the renowned Scania DC16 engine producing 574 kW, the XG899EL delivers exceptional horsepower, high torque, and outstanding fuel efficiency for continuous production in the harshest environments. Equipped with premium Kawasaki hydraulic components, including the K7V280 main pump and KMX36NA control valve, it provides fast hydraulic response, smooth multi-function operation, and precise control under heavy loads. Its 6.5–8.0 m³ heavy-duty bucket, reinforced boom and arm, and robust undercarriage enable maximum loading efficiency while minimizing cycle times. Designed for maximum durability, operator comfort, and simplified maintenance, the XG899EL is the ideal solution for mining companies and large contractors requiring exceptional productivity, reliability, and the lowest possible cost per ton moved.

Starting from
Call our sales team for pricing
Class
98 T class · Tracked
Bucket Capacity
6.5 m³
Operating Weight
98,000 kg
Engine Power (kW)
574 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class98 T class · Tracked
UndercarriageTracked

Dimensions & Weights

Operating Weight98,000 kg
Overall Length13,870 mm
Overall Width4,451 mm
Overall Height5,347 mm
Min. Ground Clearance940 mm

Engine

Engine MakeScania
Engine ModelDC16
Engine Power (kW)574 kW
Engine Power (HP)770 HP
Rated Engine Speed2,100 rpm

Performance

Power-to-Weight5.9 kW/T

Excavator Specifications

Bucket Capacity6.5 m³
Boom Length7,250 mm
Arm Length2,930 mm
Max. Digging Depth6,956 mm
Max. Digging Reach12,560 mm
Max. Digging Height12,670 mm
Dumping Height8,345 mm
Track Shoe Width4,160 mm

Original Values (as stated)

Bucket Capacity6.5-8 m³
Track Width4160/3400 mm

Additional Specs

Pump ManufacturerKawasaki
Pump ModelK7V280
Valve ManufacturerKawasaki
Valve ModelKMX36NA
Overall Height (cab)3920 mm
Tail Swing Radius4711 mm
Ground Track Length4711 mm
Track Length6445 mm
Gauge3510/2750 mm
Track Shoe Width650 mm
Turning Table Width3482 mm
Max. Digging Distance at Plane12180 mm
Min. Swing Radius5612 mm
Max. Height at Minimum Swing Radius10686 mm
Distance From Center of Swing to Rear End4271 mm
Track Grouses Thickness50 mm
Counterweight Height3750 mm
Ground Contact Length (in transport)8905 mm

Original Headline Specs

Ultra-Class Mining Excavator98 Ton Operating Weight
Ultra-Class Mining Excavator (description)As XGMA's largest crawler excavator, the XG899EL is engineered for ultra-heavy-duty mining and quarry operations, delivering exceptional stability, lifting capacity, and continuous high-production performance in the world's toughest working environments.
High-Output Powertrain574 kW Scania DC16 Diesel Engine
High-Output Powertrain (description)Powered by the premium Scania DC16 engine producing 574 kW at 2,100 rpm, the XG899EL delivers exceptional horsepower, high torque, and dependable performance for large-scale excavation while maintaining excellent fuel efficiency and long service life.
Premium Hydraulic SystemKawasaki K7V280 Hydraulic Pump & KMX36NA Control Valve
Premium Hydraulic System (description)Equipped with industry-leading Kawasaki hydraulic components, the XG899EL provides fast cycle times, responsive hydraulic control, and smooth simultaneous machine movements, maximizing productivity while reducing operator fatigue and fuel consumption.
Maximum Production Capacity6.5–8.0 m³ Bucket Capacity
Maximum Production Capacity (description)Featuring a massive 6.5–8.0 m³ heavy-duty bucket, the XG899EL is built for high-volume loading and bulk excavation. Its large bucket capacity significantly reduces loading cycles, making it the ideal machine for large mining operations, overburden removal, and quarry production.

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
