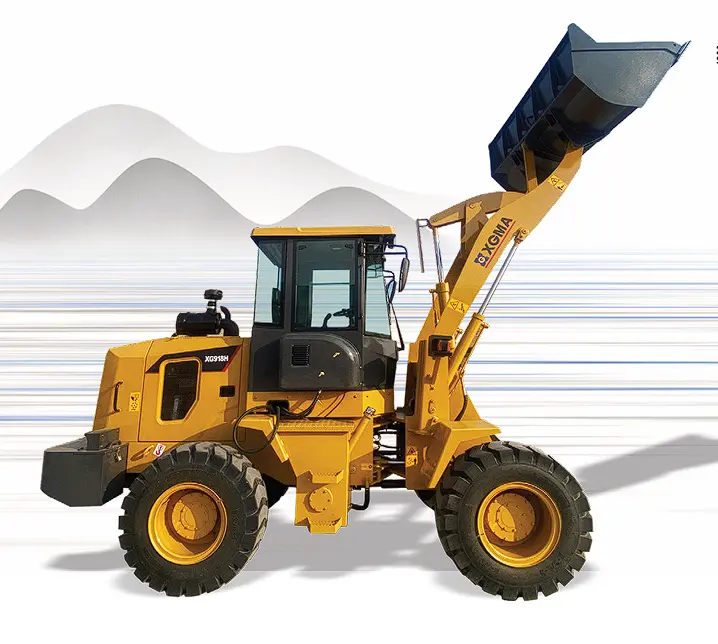

XG918H
XGMA • Loader
4B3-G92X1A-U2 classic turbocharged engine, classic fixed-axle gearbox, standard pilot control. A spacious hexagonal cab with explosion-proof glass, easily accessible control buttons and environmentally-friendly interiors, direction-adjustable handle. An aluminum cooling system arranged in a single row, electronic lifting limit and automatic alignment system, LED work light around the whole loader
Starting from
Call our sales team for pricing
Class
1.8 T class
Payload / Rated Load
1,800 kg
Bucket Capacity
1 m³
Engine Power (kW)
60 kW

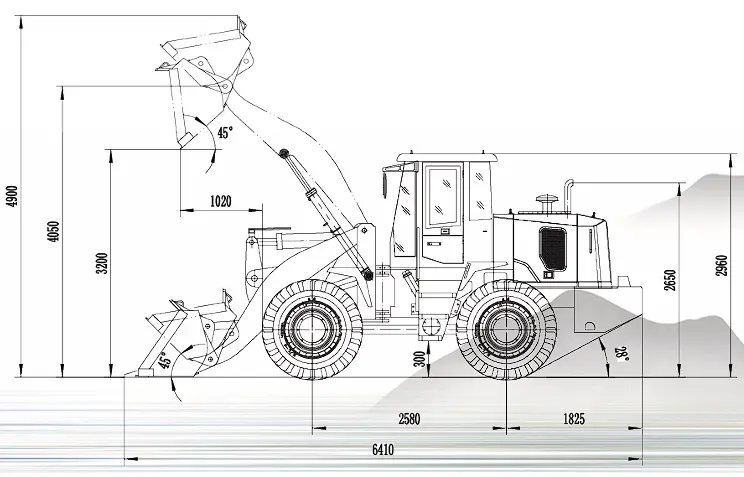

Technical Specifications
Comprehensive engineering data for operational planning.
General
Class1.8 T class
Dimensions & Weights
Operating Weight5,000 kg
Payload / Rated Load1,800 kg
Overall Length5,700 mm
Overall Width2,100 mm
Overall Height2,870 mm
Wheelbase2,580 mm

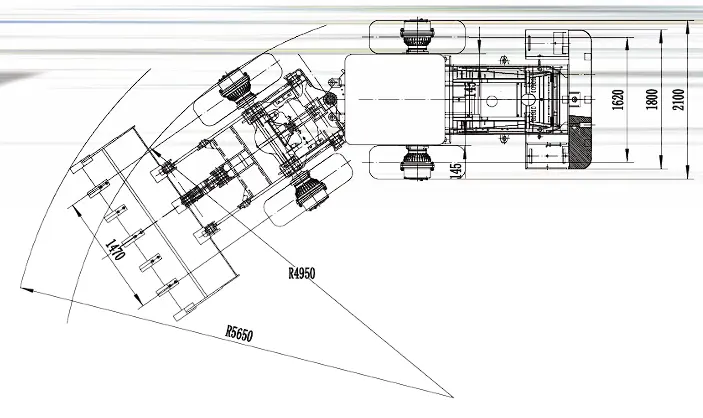

Min. Turning Radius4,200 mm
Engine
Engine Power (kW)60 kW
Engine Power (HP)80 HP
Performance
Power-to-Weight12 kW/T
Loader Specifications
Bucket Capacity1 m³
Breakout / Digging Force27 kN
Dumping Height3,080 mm
Dumping Reach880 mm
Max. Traction41 kN
Boom Lifting Time5.5 s
Total Cycle Time10 s
Original Values (as stated)
Rated Power60 kw-2400 r/min
Maximum Breakout Force> 27 Kn
Lifting time (boom)< 5.5 s
Total Cycle time of lifting-dumping-lowering< 10 s
Additional Specs
Wheelbase (mm)2.580
Wheel Tread (mm)2.100
Original Headline Specs
Lifting & Reach4050mm
Lifting & Reach (description)Features a maximum lifting height of 5826mmand a discharge height of 3060 mm, making it ideal for loading high-sided trucks and stockpiling materials.
Load Capacity1.8 Tons
Load Capacity (description)A rated load capacity of 1800kg(1.8tons) with a bucket size ranging from 1.4 to 3.0 m³ depending on the material density.
wheelbase2580mm
wheelbase (description)With great flexsibility and traffic-ability. Classic 2880mm short wheelbase layout, small turning radius, and 6650mm turning radius outside the bucket,make it more suitable for narrow working conditions
