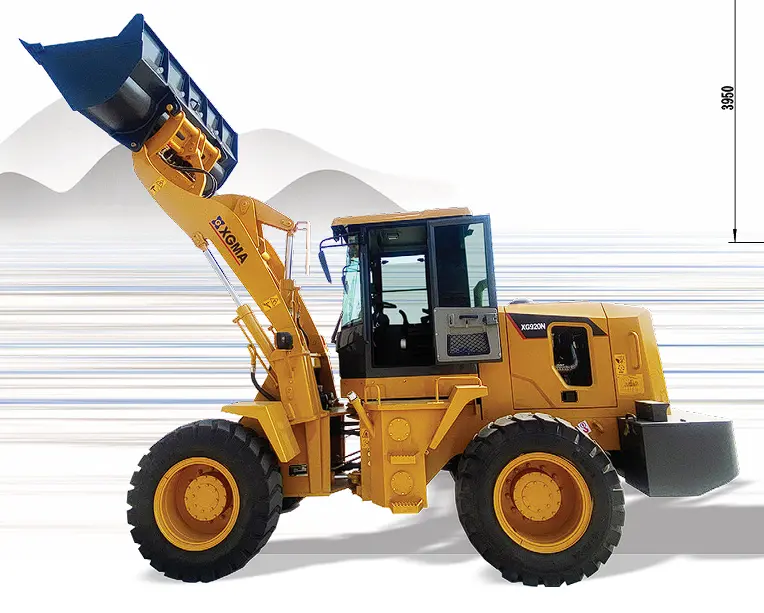

XG920N
XGMA • Loader
QSB3.9-C100-31 classic turbocharged engine,classic fixed-axle gearbox, standard pilot control. A spacious hexagonal cab with explosion-proof glass, easily accessible control buttons and environmentally-friendly interiors, direction-adjustable handle. An aluminum cooling system arranged in a single row, electronic lifting limit and automatic alignment system, LED work light around the whole loader.
Starting from
Call our sales team for pricing
Class
2 T class
Payload / Rated Load
2,000 kg
Bucket Capacity
1.1 m³
Engine Power (kW)
74 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class2 T class
Dimensions & Weights
Operating Weight6,700 kg
Payload / Rated Load2,000 kg
Overall Length6,410 mm
Overall Width2,100 mm
Overall Height2,960 mm
Wheelbase2,340 mm

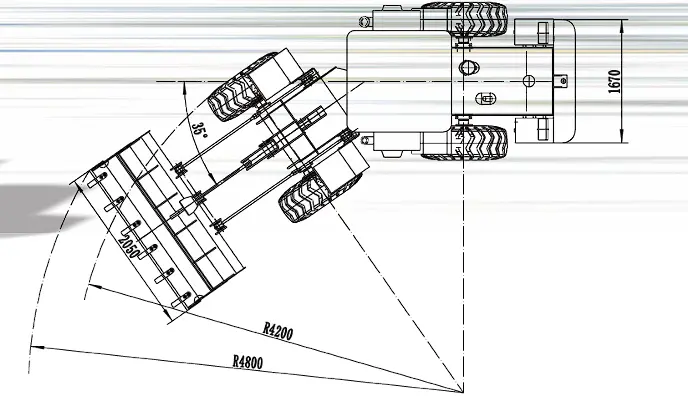

Min. Turning Radius4,200 mm
Engine
Engine ModelQSB3.9-C100-31
Engine Power (kW)74 kW
Engine Power (HP)99 HP
Performance
Power-to-Weight11 kW/T
Loader Specifications
Bucket Capacity1.1 m³
Breakout / Digging Force52 kN
Dumping Height3,200 mm
Dumping Reach1,020 mm
Max. Traction63 kN
Boom Lifting Time5.5 s
Total Cycle Time10 s
Original Values (as stated)
Rated Power74kw-2400r/min
Maximum Breakout Force> 52 KN
Lifting time (boom)< 5.5 s
Total Cycle time of lifting-dumping-lowering< 10 s
Additional Specs
Wheelbase (mm)2.340
Wheel Tread (mm)1.700
Steering Angle (L/R)35°
Original Headline Specs

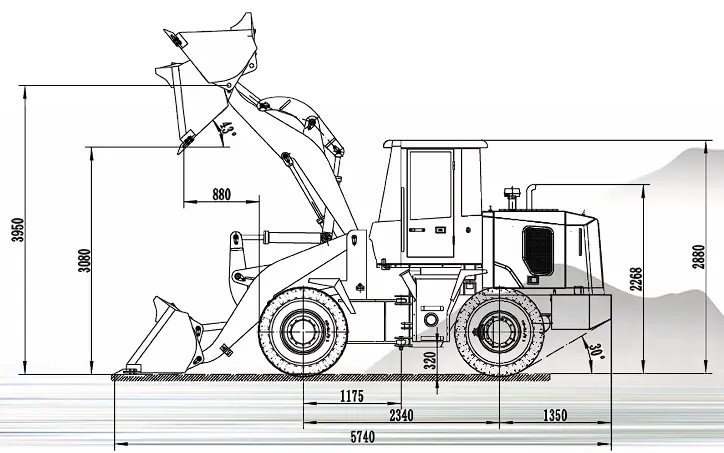

Lifting & Reach3950mm
Lifting & Reach (description)Features a maximum lifting height of 3950mma discharge height of 3060 mm, making it ideal for loading high-sided trucks and stockpiling materials.
Load Capacity2 Tons
Load Capacity (description)A rated load capacity of 2000kg (2 tons) with a bucket size ranging from 1.4 to 3.0 m³ depending on the material density.
Powertrain74kw
Powertrain (description)Equipped with a high-torque 74kw turbocharged engine (often Yuchai) designed to deliver steady power while maintaining low fuel consumption.
wheelbase2340mm
wheelbase (description)With great flexsibility and traffic-ability. Classic 2880mm short wheelbase layout, small turning radius, and 6650mm turning radius outside the bucket,make it more suitable for narrow working conditions
