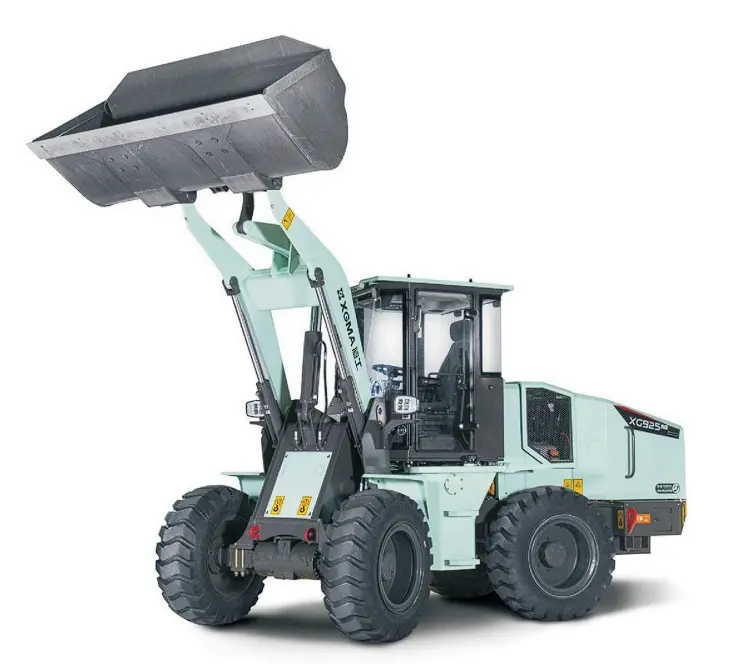

XG925EV
XGMA • Loader
The XG925EV is a high-performance 2.5-ton fully electric wheel loader engineered for construction, industrial facilities, logistics yards, and municipal operations. Equipped with a 105.02 kWh lithium iron phosphate battery, it offers greater lifting capacity, stronger breakout force, and longer operating time while delivering quiet, zero-emission performance and lower operating costs.
Starting from
Call our sales team for pricing
Class
2.5 T class
Payload / Rated Load
2,500 kg
Bucket Capacity
1.4 m³
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class2.5 T class
Transmission / GearboxXGMA Gearbox
Dimensions & Weights
Operating Weight7,100 kg
Payload / Rated Load2,500 kg
Overall Length6,250 mm
Overall Width2,150 mm
Overall Height2,900 mm
Wheelbase2,500 mm
Min. Ground Clearance350 mm
Min. Turning Radius5,400 mm
Performance
Gradeability30°
Loader Specifications
Bucket Capacity1.4 m³
Breakout / Digging Force69 kN
Dumping Height2,550 mm
Dumping Reach900 mm
Max. Traction69 kN
Battery105.02 kWh
Tire Spec16/70-24-14
Additional Specs
Thermal Management SystemLiquid Cooling/Heating
Battery TypeLi-Iron Phospate
Gearbox Gears1 Forward & 1 Reverse
Drive Axle ModelDry Axle
Working Hydraulic ModelSingle Pump Flow Diversion
Working Hydraulic OperatingPilot Control
Working Hydraulic Pressure16 MPa
Steering Hydraulic ModelFull hydraulic steering
Steering Hydraulic Pressure12 MPa
Foot Brake ModelFull Hydraulic Braking
Hand Brake ModelFlexible Shaft Control Shoe Type
Front Frame ModelFour-Plate type
Rear Frame ModelSingle Plate Structure
Hydraulic Tank Capacity100 L
Original Headline Specs
Efficient Lithium Battery105.02 kWh LiFePO₄ Battery
Efficient Lithium Battery (description)Provides clean, zero-emission operation with fast charging capability, long battery life, and reduced maintenance costs.
Heavy-Duty 2.5-Ton Capacity2,500 kg Rated Load
Heavy-Duty 2.5-Ton Capacity (description)Ideal for warehouses, factories, municipal work, and light construction with excellent maneuverability in confined spaces.
Responsive Loading Power69 kN Breakout Force • 69 kN Traction Force
Responsive Loading Power (description)Delivers dependable digging force and traction for efficient loading and material handling.
Advanced Hydraulic ControlPilot Hydraulic Control • Full Hydraulic Steering
Advanced Hydraulic Control (description)Ensures precise machine control, smooth hydraulic response, and enhanced operator comfort throughout the workday.
Need the Full Technical Catalog?
Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
