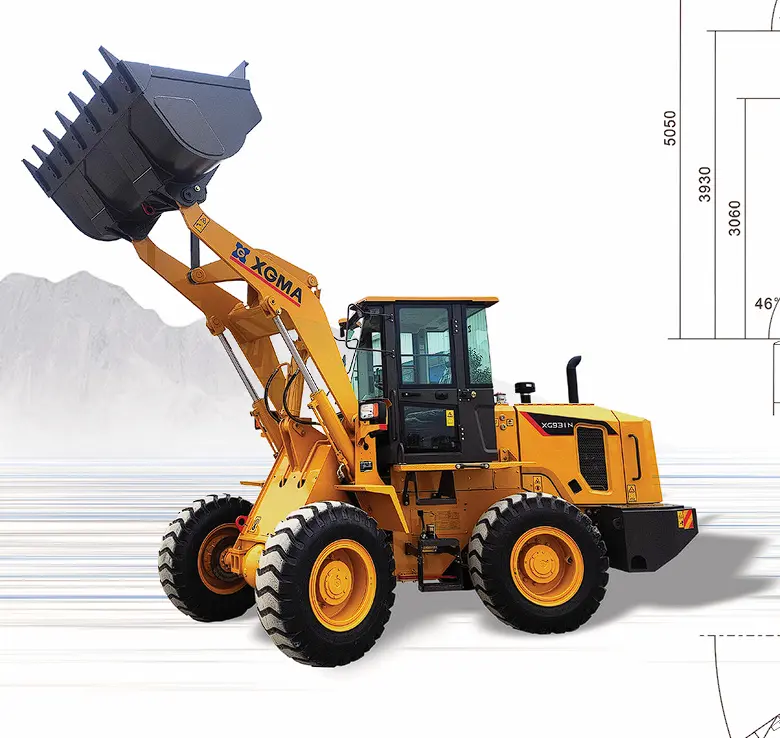

XG931N
XGMA • Loader
The XGMA XG931H is a high-performance, 3-ton wheel loader designed for heavy-duty material handling in construction, mining, and industrial environments. Part of XGMA’s "H-Series," this machine is engineered for a balance of power, fuel efficiency, and structural durability.
Starting from
Call our sales team for pricing
Class
3 T class
Payload / Rated Load
3,000 kg
Bucket Capacity
1.8 m³
Engine Power (kW)
92 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class3 T class

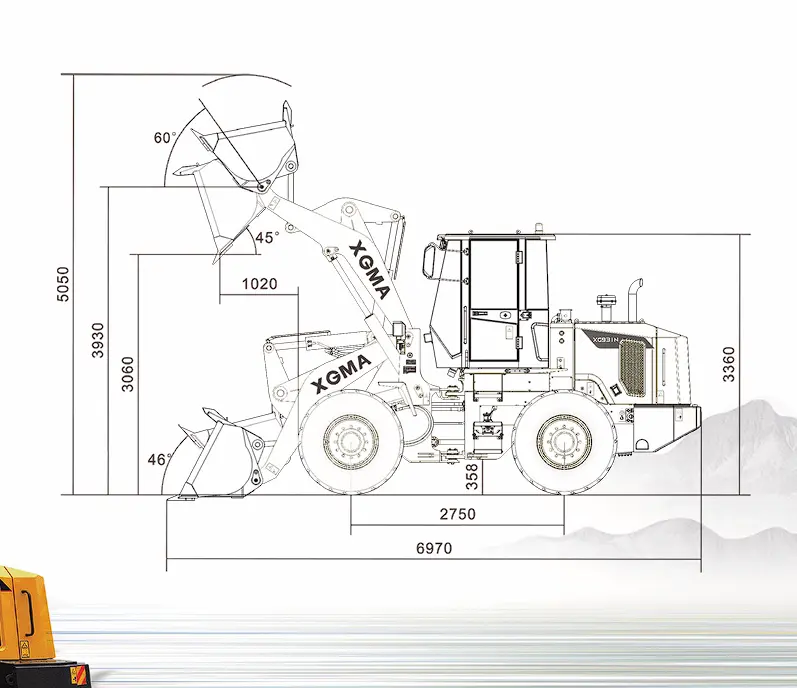

Dimensions & Weights
Operating Weight10,400 kg
Payload / Rated Load3,000 kg
Overall Length6,970 mm
Overall Width2,420 mm
Overall Height3,360 mm
Wheelbase2,750 mm

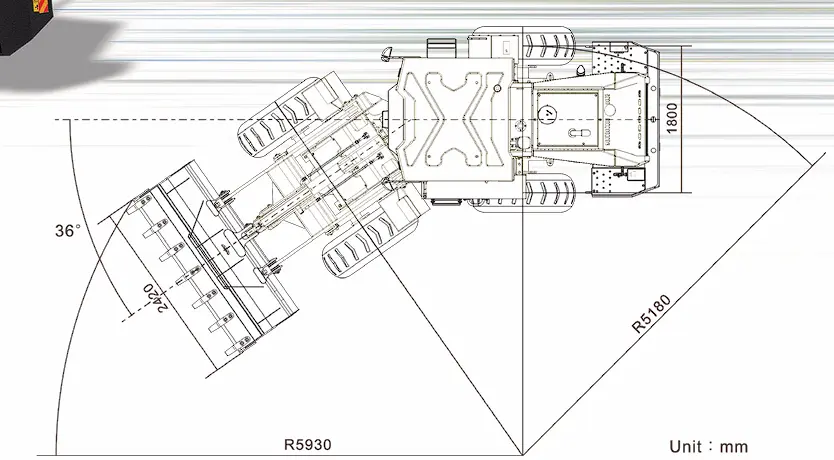

Min. Turning Radius5,930 mm
Engine
Engine ModelYC6J125Z-T21
Engine Power (kW)92 kW
Engine Power (HP)123 HP
Performance
Power-to-Weight8.8 kW/T
Loader Specifications
Bucket Capacity1.8 m³
Breakout / Digging Force105 kN
Dumping Height3,060 mm
Dumping Reach1,020 mm
Max. Traction98 kN
Boom Lifting Time5.4 s
Total Cycle Time9.9 s
Original Values (as stated)
Maximum Breakout Force> 105 Kn
Lifting time (boom)< 5.4 s
Total Cycle time of lifting-dumping-lowering< 9.9 s
Additional Specs
Wheel Tread (mm)1.800
Steering Angle (L/R)36°
Original Headline Specs
Lifting & Reach5050 mm
Lifting & Reach (description)Features a maximum lifting height of 5050 mm and a discharge height of 3060 mm, making it ideal for loading high-sided trucks and stockpiling materials.
Load Capacity3 Tons
Load Capacity (description)A rated load capacity of 3,000 kg (3 tons) with a bucket size ranging from 1.4 to 3.0 m³ depending on the material density.
Powertrain
