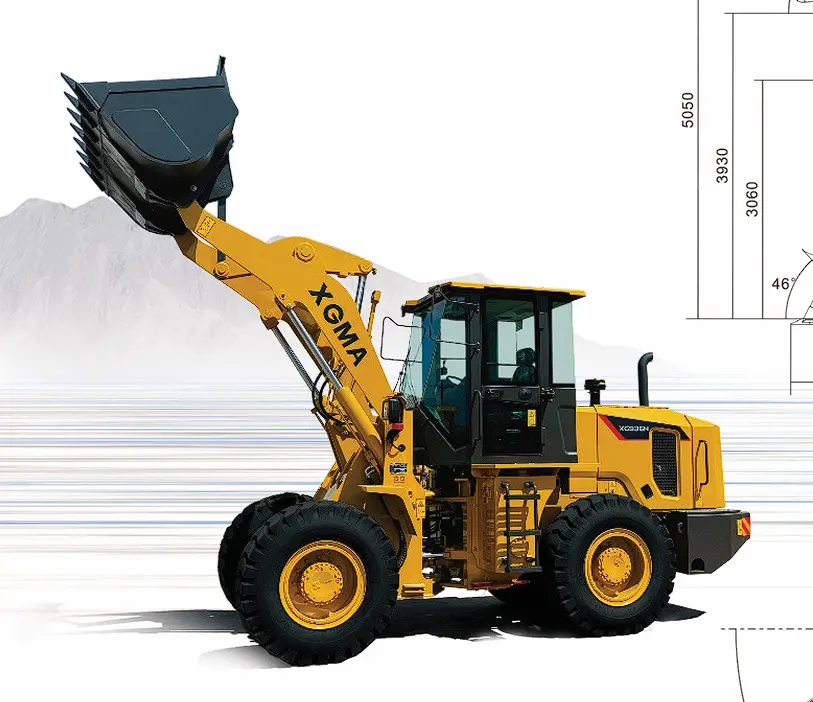

XG936N
XGMA • Loader
he classic turbocharged engine and 4-ton power gearshift planetary gearbox, the loader carries the load stably and operates flexibly. A spacious hexagonal cab with explosion-proof glass, brand-new interiors, pilot control, an electronic lifting limit and an automatic alignment system, which allows a comfortable and easy operation.
Starting from
Call our sales team for pricing
Class
3.2 T class
Payload / Rated Load
3,200 kg
Bucket Capacity
1.8 m³
Engine Power (kW)
92 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class3.2 T class

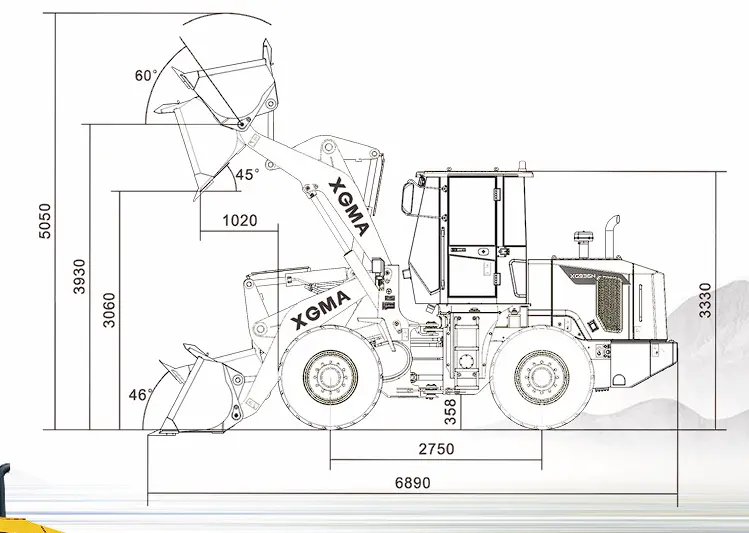

Dimensions & Weights
Operating Weight10,800 kg
Payload / Rated Load3,200 kg
Overall Length6,990 mm
Overall Width2,420 mm
Overall Height3,320 mm
Wheelbase2,750 mm

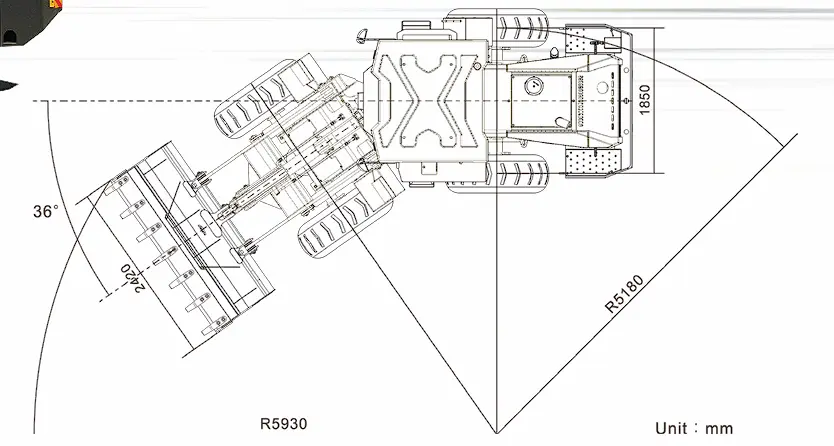

Min. Turning Radius5,930 mm
Engine
Engine ModelYC6J125Z-T21
Engine Power (kW)92 kW
Engine Power (HP)123 HP
Performance
Power-to-Weight8.5 kW/T
Loader Specifications
Bucket Capacity1.8 m³
Breakout / Digging Force105 kN
Dumping Height3,060 mm
Dumping Reach1,020 mm
Max. Traction100 kN
Boom Lifting Time5.4 s
Total Cycle Time9.9 s
Original Values (as stated)
Maximum Breakout Force> 105 Kn
Lifting time (boom)< 5.4 s
Total Cycle time of lifting-dumping-lowering< 9.9 s
Additional Specs
Wheel Tread (mm)1.800
Steering Angle (L/R)36°
Original Headline Specs
Lifting & Reach5050 mm
Lifting & Reach (description)Features a maximum lifting height of 5050 mm and a discharge height of 3060 mm, making it ideal for loading high-sided trucks and stockpiling materials.
Load Capacity4 Tons
Load Capacity (description)A rated load capacity of 4,000 kg (4 tons) with a bucket size ranging from 1.4 to 3.0 m³ depending on the material density.
Powertrain92kW
Powertrain (description)Equipped with a high-torque 92 kW turbocharged engine (often Yuchai) designed to deliver steady power while maintaining low fuel consumption.
Short wheelbase2750mm
Short wheelbase (description)With great flexsibility and traffic-ability. Classic 2880mm short wheelbase layout, small turning radius, and 6650mm turning radius outside the bucket,make it more suitable for narrow working conditions
