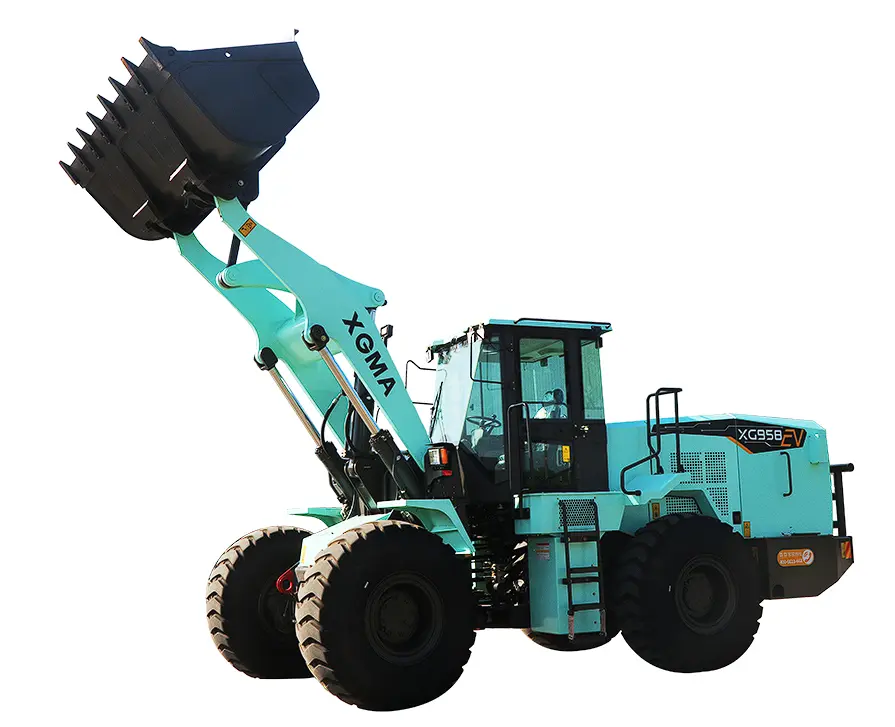

XG958EV
XGMA • Loader
The XG958EV is a next-generation 5.8-ton electric wheel loader engineered for high-performance material handling with zero tailpipe emissions. Powered by a high-capacity lithium battery and dual electric motors, it delivers powerful breakout force, lower operating costs, and quiet operation—making it ideal for mining, ports, industrial plants, and environmentally sensitive job sites.
Starting from
Call our sales team for pricing
Class
5.8 T class
Payload / Rated Load
5,800 kg
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class5.8 T class
Transmission / GearboxAMT Gearbox

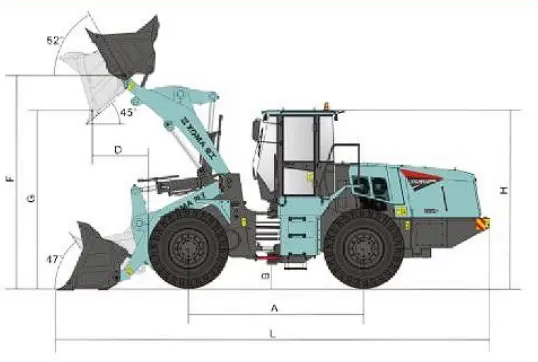

Dimensions & Weights
Operating Weight18,200 kg
Payload / Rated Load5,800 kg
Overall Length8,795 mm
Overall Width3,000 mm
Overall Height3,450 mm
Wheelbase3,450 mm
Min. Ground Clearance430 mm

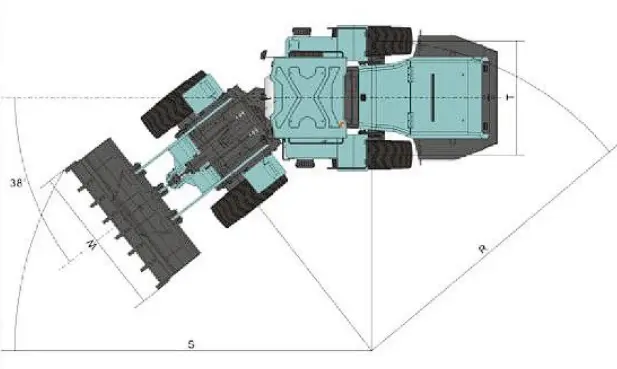

Min. Turning Radius6,100 mm
Performance
Gradeability28°
Loader Specifications
Breakout / Digging Force170 kN
Dumping Height3,170 mm
Dumping Reach1,200 mm
Max. Traction175 kN
Battery282 kWh / 350 kWh
Tire Spec23.5-25x20 / 23.5-25x16
Original Values (as stated)
Length8795 mm - 9500 mm
Width3000 mm - 3010 mm
Mass18200 kg - 19300 kg
Max. Unloading Height3170 mm - 3660 mm
Max. Unloading Distance1200 mm - 1505 mm
Additional Specs
Drive Motor90 kW / 150 kW
Traveling Motor100 kW / 200 kW
Gearbox Gears2 Forward & 2 Reverse
Drive Axle ModelDry Axle
Working Hydraulic ModelQuantitatiove confluent and shunt
Working Hydraulic OperatingPioneer hydraulic control
Working Hydraulic Pressure19 MPa
Steering Hydraulic ModelFull hydraulic steering
Steering Hydraulic Pressure15 MPa
Foot Brake ModelFull Hydraulic Braking
Hand Brake ModelFlexible Shaft Control Clamp Type
Front Frame ModelFour-Plate type
Rear Frame ModelSingle Plate Structure
Boom Pin Ground Clearence4170 mm - 4602
Optional Bucket Capacity2.2 m³ - 4.5 m³
Hydraulic Tank Capacity185 L
Original Headline Specs
Zero-Emission Electric Powertrain282–350 kWh Lithium Battery
Zero-Emission Electric Powertrain (description)Equipped with a high-capacity lithium battery system, the XG958EV delivers clean, quiet, and efficient operation while significantly reducing fuel consumption, emissions, and maintenance costs.
High Payload Capacity5,800 kg Rated Load
High Payload Capacity (description)Designed for demanding material handling applications, the XG958EV offers a 5.8-ton rated load, making it ideal for mining, ports, quarries, and industrial operations.
Powerful Loading Performance170 kN Breakout Force • 175 kN Traction Force
Powerful Loading Performance (description)Dual electric motors provide impressive breakout and traction forces, enabling faster loading cycles and excellent performance on heavy-duty applications.
Large Material Handling Capacity2.2–4.5 m³ Bucket Capacity
Large Material Handling Capacity (description)Compatible with multiple bucket sizes up to 4.5 m³, the XG958EV can be configured to maximize productivity across various bulk material handling tasks.
