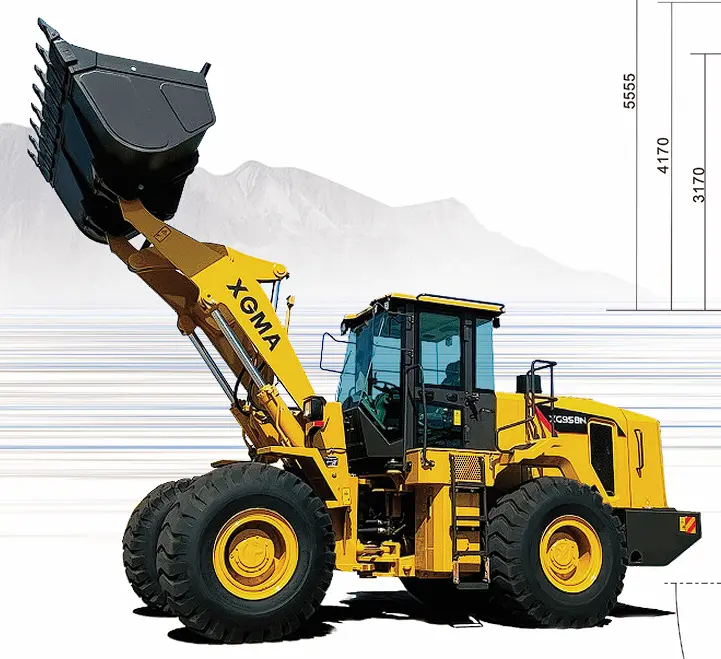

XG958N
XGMA • Loader
3300mm wheelbase and 175kN digging force ensure steady holding behaviour and serve well heavy-duty conditions. Components come with high reliability thanks to FEM refined engineering. ZF dual variable power, Meritor drive axle and large torque transmission shaft bring about smooth gear shifting and reliable transmission.
Starting from
Call our sales team for pricing
Class
5 T class
Payload / Rated Load
5,000 kg
Bucket Capacity
3 m³
Engine Power (kW)
162 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class5 T class

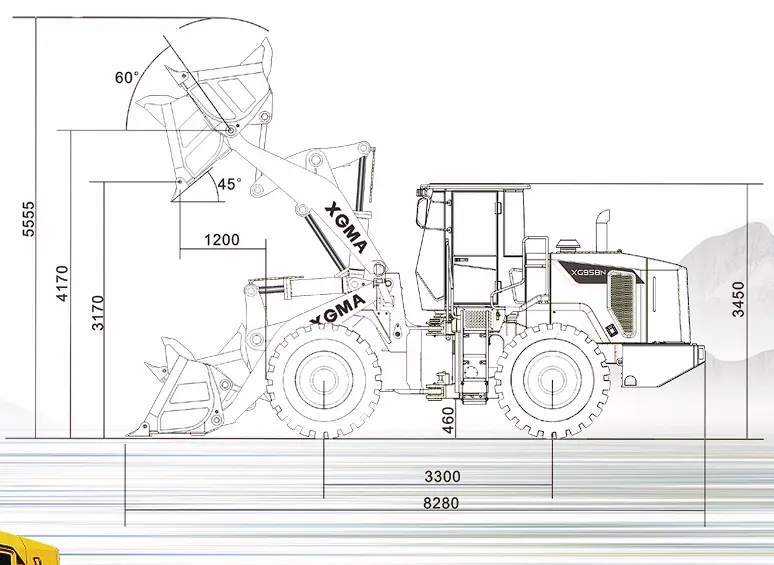

Dimensions & Weights
Operating Weight17,000 kg
Payload / Rated Load5,000 kg
Overall Length8,280 mm
Overall Width3,000 mm
Overall Height3,450 mm
Wheelbase3,300 mm

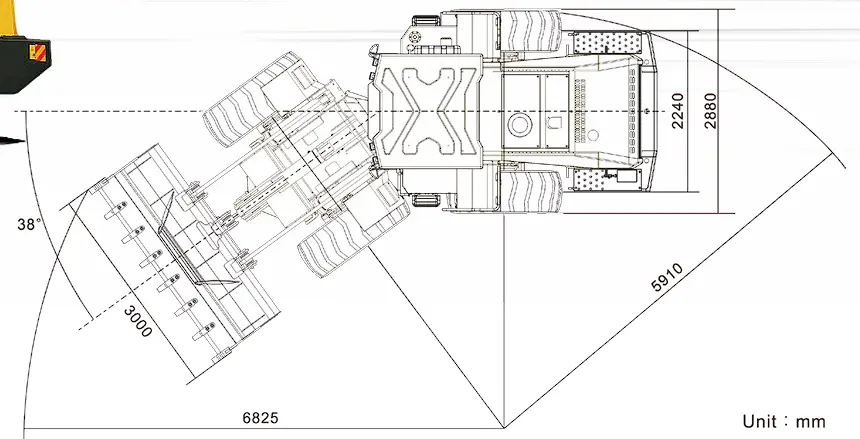

Min. Turning Radius6,825 mm
Engine
Engine ModelSC11CB220G2B1
Engine Power (kW)162 kW
Engine Power (HP)217 HP
Performance
Power-to-Weight9.5 kW/T
Loader Specifications
Bucket Capacity3 m³
Breakout / Digging Force180 kN
Dumping Height3,170 mm
Dumping Reach1,200 mm
Max. Traction165 kN
Boom Lifting Time5.5 s
Total Cycle Time10 s
Original Values (as stated)
Maximum Breakout Force> 180 Kn
Lifting time (boom)< 5.5 s
Total Cycle time of lifting-dumping-lowering< 10 s
Additional Specs
Wheelbase (mm)3.300
Wheel Tread (mm)2.240
Steering Angle (L/R)38°
Original Headline Specs
Lifting & Reach5555mm
Lifting & Reach (description)Features a maximum lifting height of 5555mm and a discharge height of 3060 mm, making it ideal for loading high-sided trucks and stockpiling materials.
Load Capacity5 Tons
Load Capacity (description)A rated load capacity of 3,000 5kg (5 tons) with a bucket size ranging from 1.4 to 3.0 m³ depending on the material density.
Powertrain162kW
Powertrain (description)Equipped with a high-torque 162kW turbocharged engine (often Yuchai) designed to deliver steady power while maintaining low fuel consumption.
wheelbase3300mm
wheelbase (description)With great flexsibility and traffic-ability. Classic 2880mm short wheelbase layout, small turning radius, and 6650mm turning radius outside the bucket,make it more suitable for narrow working conditions
