Fleet>Loader>XG968EV

XG968EV

Name: XG968EV
Brand: XGMA
Availability: InStock

XGMA • Loader

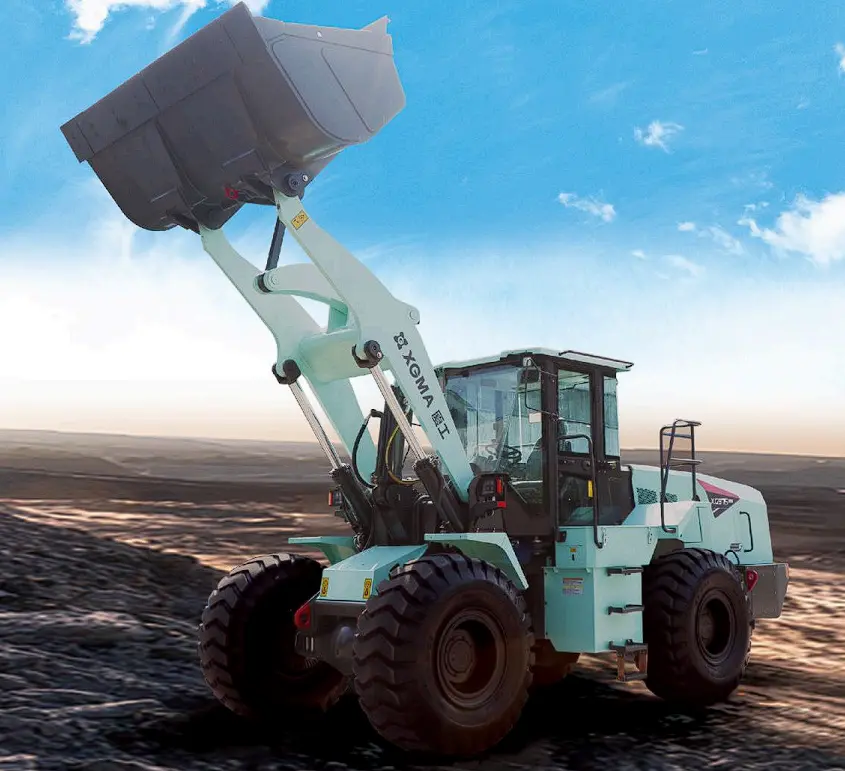

The XG968EV is a high-performance 6.5-ton electric wheel loader engineered for demanding material handling applications in mining, ports, steel plants, quarries, and industrial facilities. Powered by a high-capacity lithium battery and advanced dual electric motor system, it delivers exceptional breakout force, high traction, zero tailpipe emissions, and significantly lower operating costs than conventional diesel loaders. With a large bucket capacity, fast hydraulic response, and quiet operation, the XG968EV maximizes productivity while supporting sustainable operations.

Starting from

Call our sales team for pricing

Class

6.5 T class

Payload / Rated Load

6,500 kg

Bucket Capacity

3 m³

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class6.5 T class

Transmission / GearboxAMT Gearbox

Dimensions & Weights

Operating Weight21,300 kg

Payload / Rated Load6,500 kg

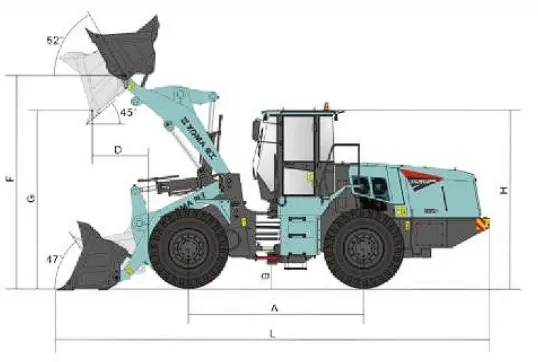

Overall Length9,220 mm

Overall Width3,285 mm

Overall Height3,540 mm

Wheelbase3,225 mm

Min. Ground Clearance430 mm

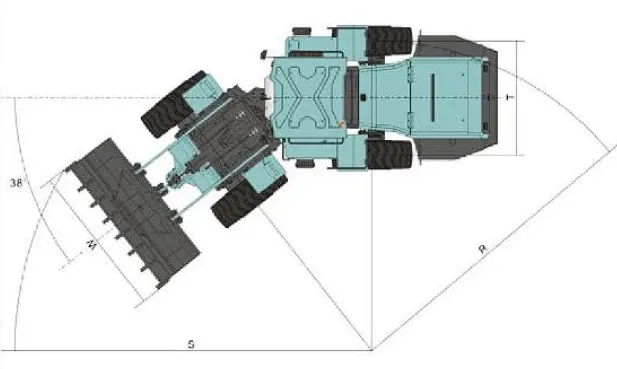

Min. Turning Radius6,310 mm

Performance

Gradeability28°

Loader Specifications

Bucket Capacity3 m³

Breakout / Digging Force185 kN

Dumping Height3,200 mm

Dumping Reach1,300 mm

Max. Traction182 kN

Battery350 kWh / 423 kWh

Tire Spec23.5-25x20

Original Values (as stated)

Length9220 mm - 10090 mm

Max. Unloading Height3200 mm - 3860 mm

Max. Unloading Distance1300 mm - 1320 mm

Additional Specs

Drive Motor90 kW / 150 kW

Traveling Motor100 kW / 200 kW

Gearbox Gears2 Forward & 2 Reverse

Drive Axle ModelDry Axle

Working Hydraulic ModelQuantitative convergence

Working Hydraulic OperatingPioneer hydraulic control

Working Hydraulic Pressure20 MPa

Steering Hydraulic ModelFull hydraulic steering

Steering Hydraulic Pressure17 MPa

Foot Brake ModelFull Hydraulic Braking

Hand Brake ModelFlexible Shaft Control Clamp Type

Front Frame ModelFour-Plate type

Rear Frame ModelSingle Plate Structure

Boom Pin Ground Clearence4170 mm

Optional Bucket Capacity2.2 m³ - 4.5 m³

Hydraulic Tank Capacity185 L

Original Headline Specs

High-Capacity Lithium Battery350–423 kWh

High-Capacity Lithium Battery (description)Equipped with a large-capacity lithium battery pack that provides long operating hours, fast charging capability, zero emissions, and reduced maintenance costs.

Heavy-Duty Rated Load6,500 kg Rated Load

Heavy-Duty Rated Load (description)Designed to efficiently handle heavy materials in mining, quarry, port, and industrial applications with excellent lifting stability and productivity.

Powerful Loading Performance185 kN Breakout Force • 182 kN Traction Force

Powerful Loading Performance (description)High-performance electric drive delivers exceptional digging force and traction for faster loading cycles and superior performance under heavy workloads.

Large Bucket Capacity3.0–6.0 m³ Bucket Options

Large Bucket Capacity (description)Compatible with a wide range of bucket capacities, allowing the loader to be optimized for aggregates, coal, ore, sand, and other bulk materials.

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
