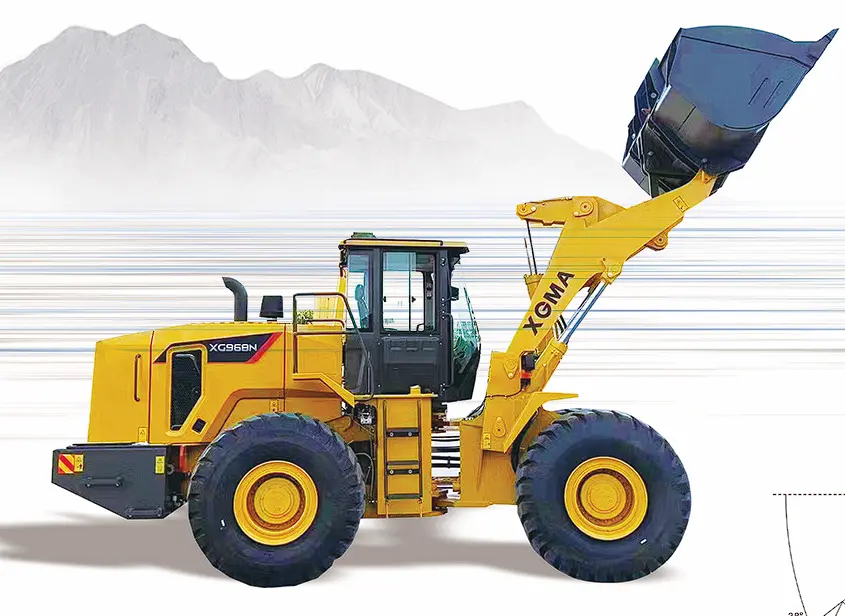

XG968N
XGMA • Loader
Adopting ZF automatic shifting gearbox and Meritor heavy-duty drive axle, the transmission is reliable and efficient, the driving operation is simple and comfortable, the gear shift is smooth, and the performance is stable and reliable. XG968N adopts a hexahedron FOPS&ROPS, noise reduction and shock absorption cab, spacious room and wide field of vision. Furthermore, it’s equipped with fresh air ventilation air-conditioning, ergonomic operation layout, which provides a healthy and comfortable driving condition for the operator.
Starting from
Call our sales team for pricing
Class
6.5 T class
Payload / Rated Load
6,500 kg
Bucket Capacity
4 m³
Engine Power (kW)
175 kW
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class6.5 T class
Dimensions & Weights
Operating Weight21,000 kg
Payload / Rated Load6,500 kg

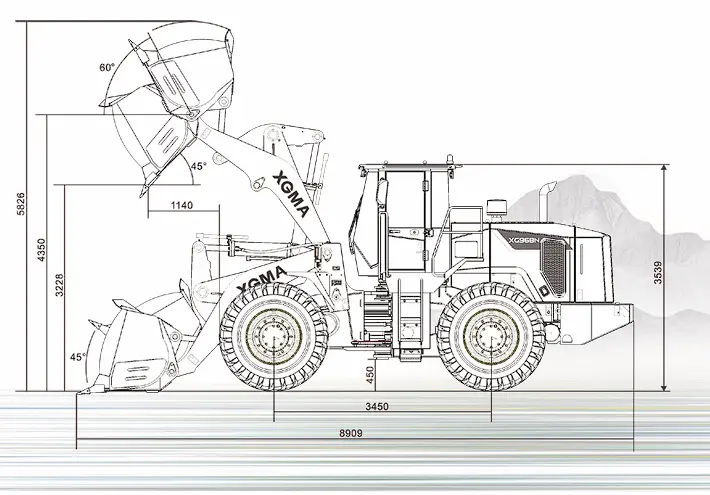

Overall Length8,909 mm
Overall Width3,285 mm
Overall Height3,539 mm
Wheelbase3,450 mm

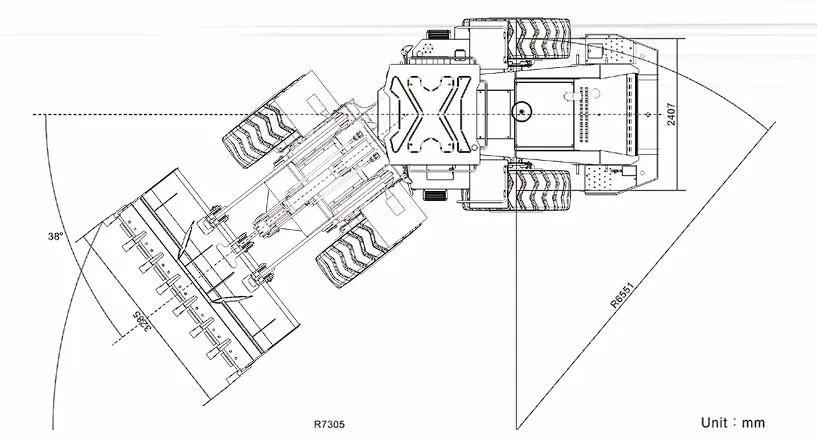

Min. Turning Radius7,305 mm
Engine
Engine ModelSC11CB240.1G2B1
Engine Power (kW)175 kW
Engine Power (HP)235 HP
Performance
Power-to-Weight8.3 kW/T
Loader Specifications
Bucket Capacity4 m³
Breakout / Digging Force200 kN
Dumping Height3,228 mm
Dumping Reach1,140 mm
Max. Traction200 kN
Boom Lifting Time5.5 s
Total Cycle Time10 s
Original Values (as stated)
Maximum Breakout Force> 200Kn
Lifting time (boom)< 5.5 s
Total Cycle time of lifting-dumping-lowering< 10 s
Additional Specs
Wheelbase (mm)3.450
Wheel Tread (mm)2.407
Steering Angle (L/R)38°
Original Headline Specs
Lifting & Reach5826mm
Lifting & Reach (description)Features a maximum lifting height of 5826mmand a discharge height of 3060 mm, making it ideal for loading high-sided trucks and stockpiling materials.
Load Capacity6.5 Tons
Load Capacity (description)A rated load capacity of 6500kg (6.5tons) with a bucket size ranging from 1.4 to 3.0 m³ depending on the material density.
Powertrain175kW
Powertrain (description)Equipped with a high-torque 162kW turbocharged engine (often Yuchai) designed to deliver steady power while maintaining low fuel consumption.
wheelbase3450mm
wheelbase (description)With great flexsibility and traffic-ability. Classic 2880mm short wheelbase layout, small turning radius, and 6650mm turning radius outside the bucket,make it more suitable for narrow working conditions
