XG975EV
XGMA • Loader

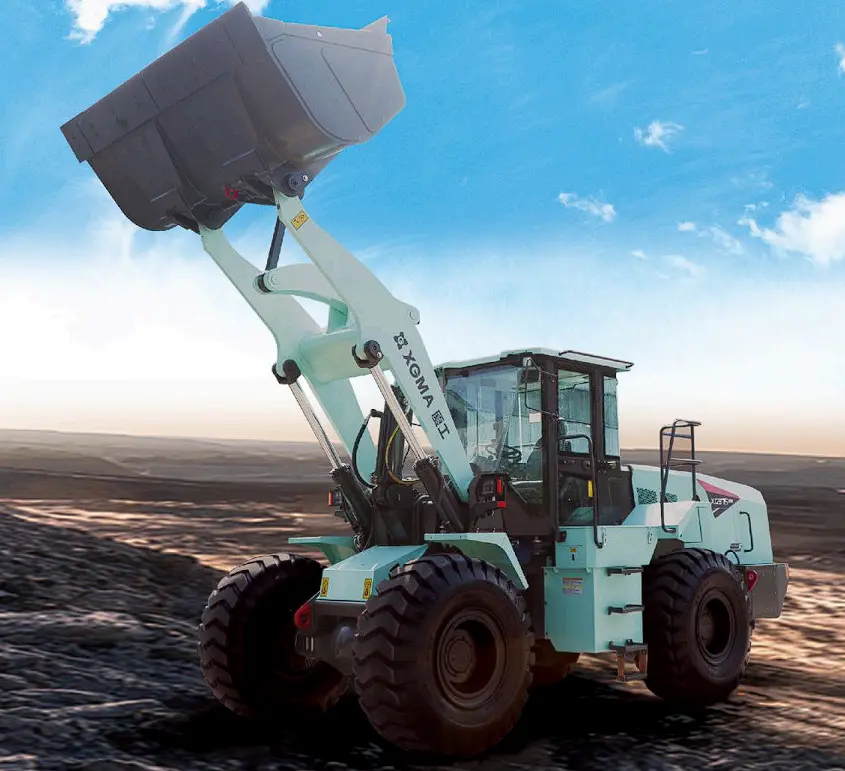

The XG975EV is a next-generation 7.0-ton fully electric wheel loader engineered for demanding mining, quarrying, ports, and industrial material handling. Powered by a 350–423 kWh lithium battery, it delivers outstanding loading performance with 200 kN breakout force, 186 kN traction force, and a high-efficiency dual AC motor system. Combining zero-emission operation, intelligent hydraulic control, and low operating costs, the XG975EV is designed to maximize productivity while supporting sustainable heavy-duty operations.
Starting from
Call our sales team for pricing
Class
7 T class
Payload / Rated Load
7,000 kg
Technical Specifications
Comprehensive engineering data for operational planning.
General
Class7 T class
Transmission / GearboxAMT Gearbox

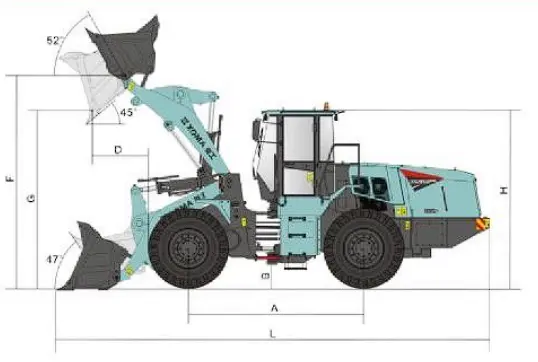

Dimensions & Weights
Operating Weight21,300 kg
Payload / Rated Load7,000 kg
Overall Length9,220 mm
Overall Width3,285 mm
Overall Height3,540 mm
Wheelbase3,225 mm
Min. Ground Clearance450 mm

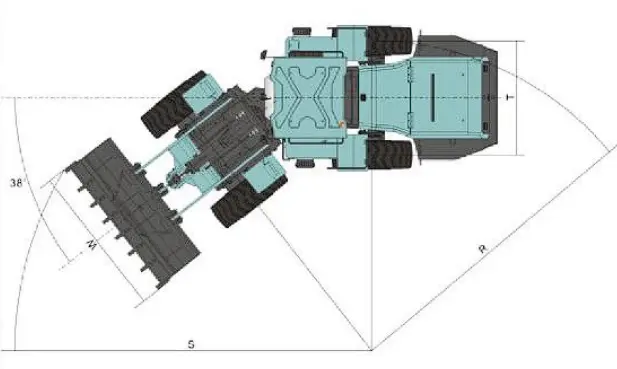

Min. Turning Radius6,310 mm
Performance
Gradeability28°
Loader Specifications
Breakout / Digging Force200 kN
Dumping Height3,200 mm
Dumping Reach1,300 mm
Max. Traction185 kN
Battery350 kWh / 423 kWh
Tire Spec26.5-25x20
Original Values (as stated)
Length9220 mm - 10090 mm
Max. Unloading Height3200 mm - 3860 mm
Max. Unloading Distance1300 mm - 1320 mm
Additional Specs
Drive Motor90 kW / 150 kW
Traveling Motor100 kW / 200 kW
Gearbox Gears2 Forward & 2 Reverse
Drive Axle ModelDry Axle
Working Hydraulic ModelQuantitative convergence
Working Hydraulic OperatingPioneer hydraulic control
Working Hydraulic Pressure20 MPa
Steering Hydraulic ModelFull hydraulic steering
Steering Hydraulic Pressure17 MPa
Foot Brake ModelFull Hydraulic Braking
Hand Brake ModelFlexible Shaft Control Clamp Type
Front Frame ModelFour-Plate type
Rear Frame ModelSingle Plate Structure
Optional Bucket Capacity2.2 m³ - 4.5 m³
Hydraulic Tank Capacity185 L
Original Headline Specs
High-Capacity Lithium Battery350–423 kWh
High-Capacity Lithium Battery (description)Equipped with a large-capacity lithium battery pack that provides long operating hours, fast charging capability, zero emissions, and reduced maintenance costs.
Heavy-Duty Rated Load7,000 kg Rated Load
Heavy-Duty Rated Load (description)Designed to efficiently handle heavy materials in mining, quarry, port, and industrial applications with excellent lifting stability and productivity.
Powerful Loading Performance200 kN Breakout Force • 186 kN Traction Force
Powerful Loading Performance (description)High-performance electric drive delivers exceptional digging force and traction for faster loading cycles and superior performance under heavy workloads.
Intelligent Electro-Hydraulic System20 MPa Hydraulic Pressure • 5.7 s Lift Time
Intelligent Electro-Hydraulic System (description)Advanced electro-hydraulic control with a 2-speed AMT transmission delivers smooth, precise operation, fast hydraulic response, and enhanced operator comfort for maximum efficiency.
